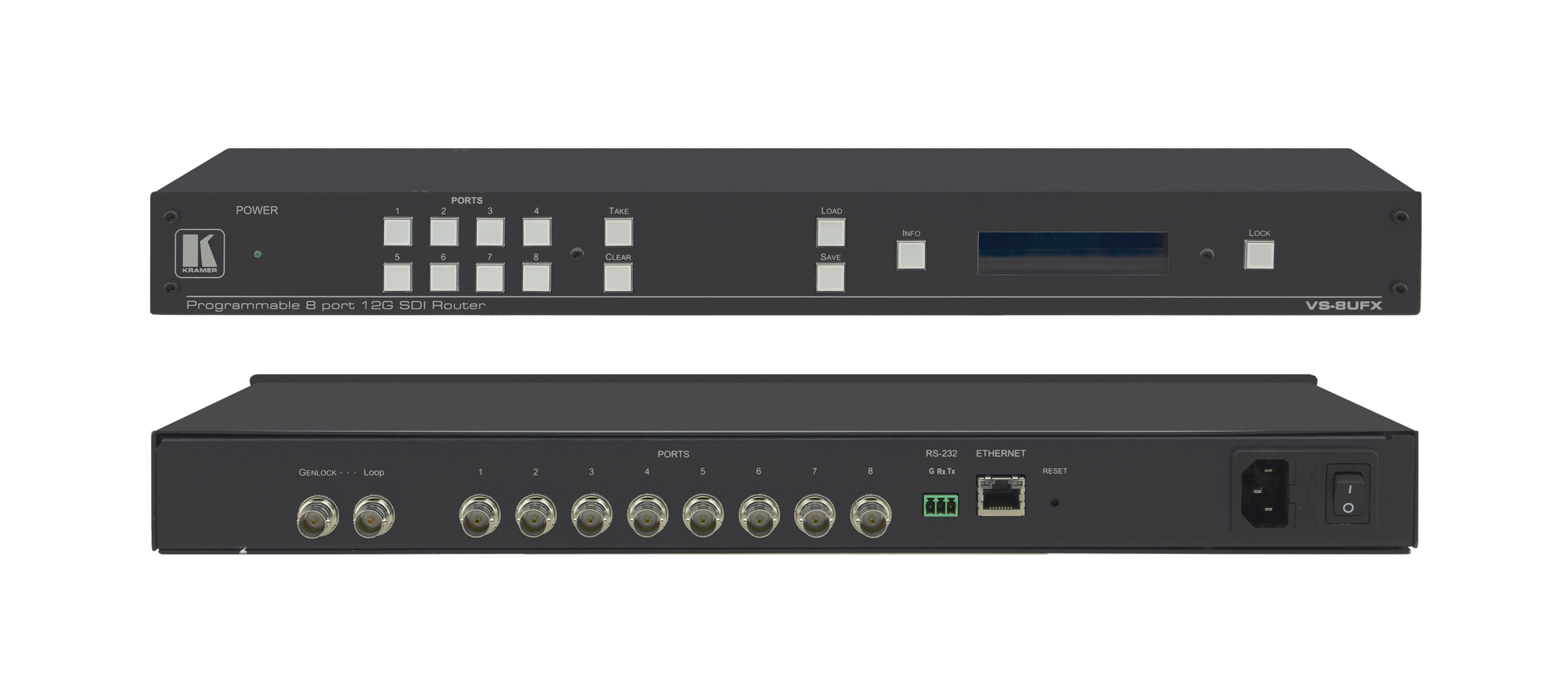

Kramer VS-8UFX

8–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs

Max Data Rate 12Gbps
All 8 SDI ports configurable as inputs or outputs
Multi–Standard Operation — SDI, HD–SDI, 3G SDI, 6G SDI, 12G SDI
Cable Equalization
Genlock versatility and clean–switching

‍

Download Specsheet



VS−8UFX is an 8−port matrix switcher for SDI signals for up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x7 distribution amplifier, 7x1 switcher, 4x4 matrix switcher or any other possible input−output combination. VS−8UFX is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller.

Max. Data Rate — 12Gbps.
HDTV Compatible.
Multi–Standard Operation — 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M
Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
Supports ANC Data — Embedded audio, teletext, time code, etc.
Cable Equalization — Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.
Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
Versatile Genlocking — Using an analog signal.
Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.

‍

Ports

8 12G HD-SDI/HD-SDI/SDI video: On BNC connectors (by default, 1 to 4 are set as inputs and 5 to 8 are set as outputs)
1 Genlock: 75Ω on a BNC connector

Standards Compliance

12G-SDI: SMPTE ST–2082–1
3G HD-SDI: SMPTE 424M
HD-SDI: SMPTE 292M
SDI: SMPTE 259M/344M

Video

Max. Resolution: 4K@60Hz (4:2:2)
Max. Data Rate: 12Gbps

User Interface

Controls: Front Panel Buttons, RS–232, Ethernet, Web pages
Indicators: LCD display, Power LED

Extension Line

SD: Up to 300m
1.5G HD: Up to 200m
3G: Up to 100m
6G: Up to 100m
12G: Up to 80m
COUPLING: AC

Power

Source: 100–240V AC
Consumption : 33VA max

Enclosure

Size: 19”, 1U
Type: Aluminum
Cooling: Fan ventilation

Environmental Conditions

Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing

Regulatory Compliance (Standards Compliance)

Safety: CE
Environmental: RoHs, WEEE

Accessories

Included: Power cord, rack ears
Cables (Recommended): Belden 4794R and 4855R 12G–SDI coax cables

Product Dimensions

43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H

Product Weight

1.7kg (3.7lbs) approx.

Shipping Dimensions

55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

Shipping Weight

2.7kg (6.0lbs) approx.

‍
