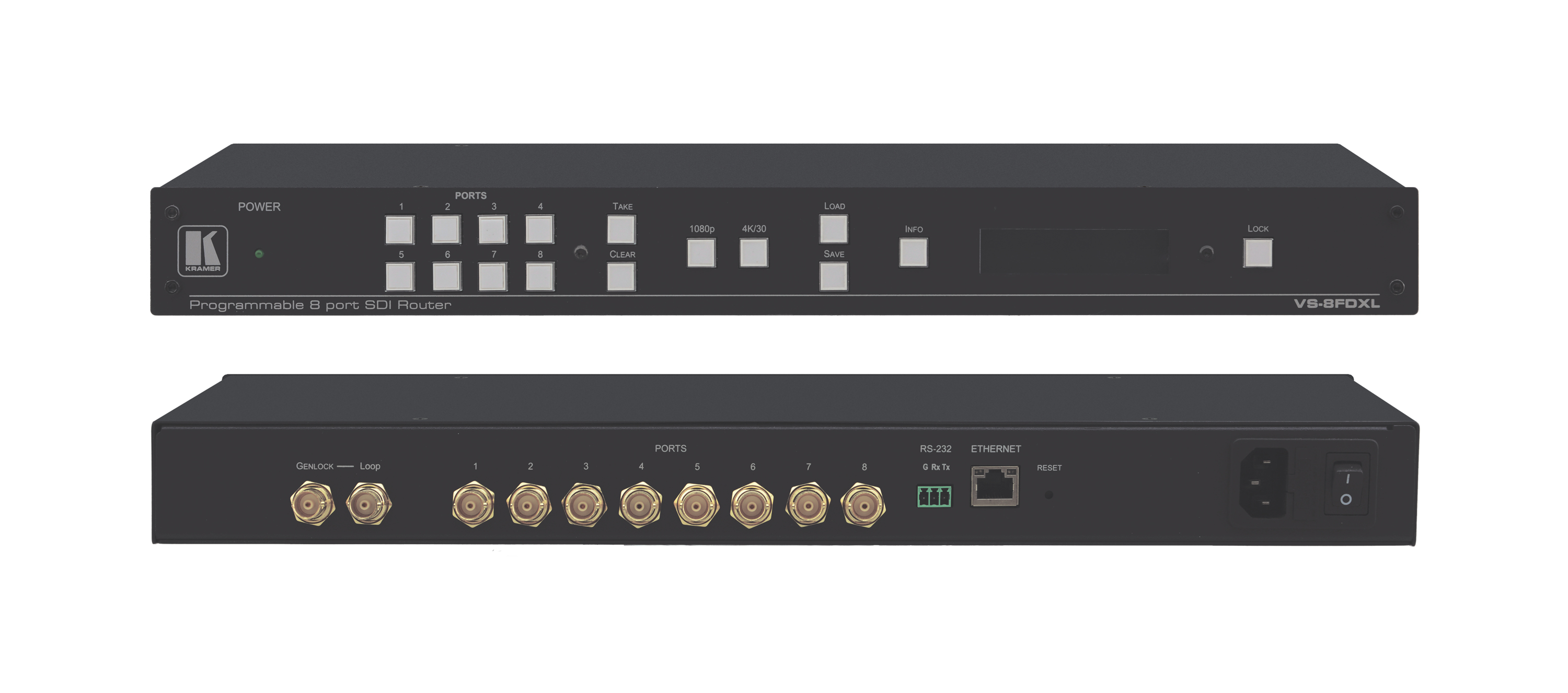

Kramer VS-8FDxl

Revolutionary 8–Port SDI Matrix Switcher with Interchangeable Inputs and Outputs

  • Each port configures to input and output
  • All configurations from 1:7 DA to 7x1 switcher
  • High versatility for SDI applications
  • Dual port 4K

Download Specsheet

VS−8FDxl is an 8−port matrix switcher for SDI signals for up to 3G HD−SDI. Each SDI port can be defined as either an input or output.

  • Max. Data Rate — 3Gbps.
  • HDTV Compatible.
  • Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
  • Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  • Supports ANC Data — Embedded audio, teletext, time code, etc.
  • Cable Equalization — Up to 350m for SD signals, 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals.
  • Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
  • Versatile Genlocking — Using an analog signal.
  • Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.


Applications

  • Rental and staging
