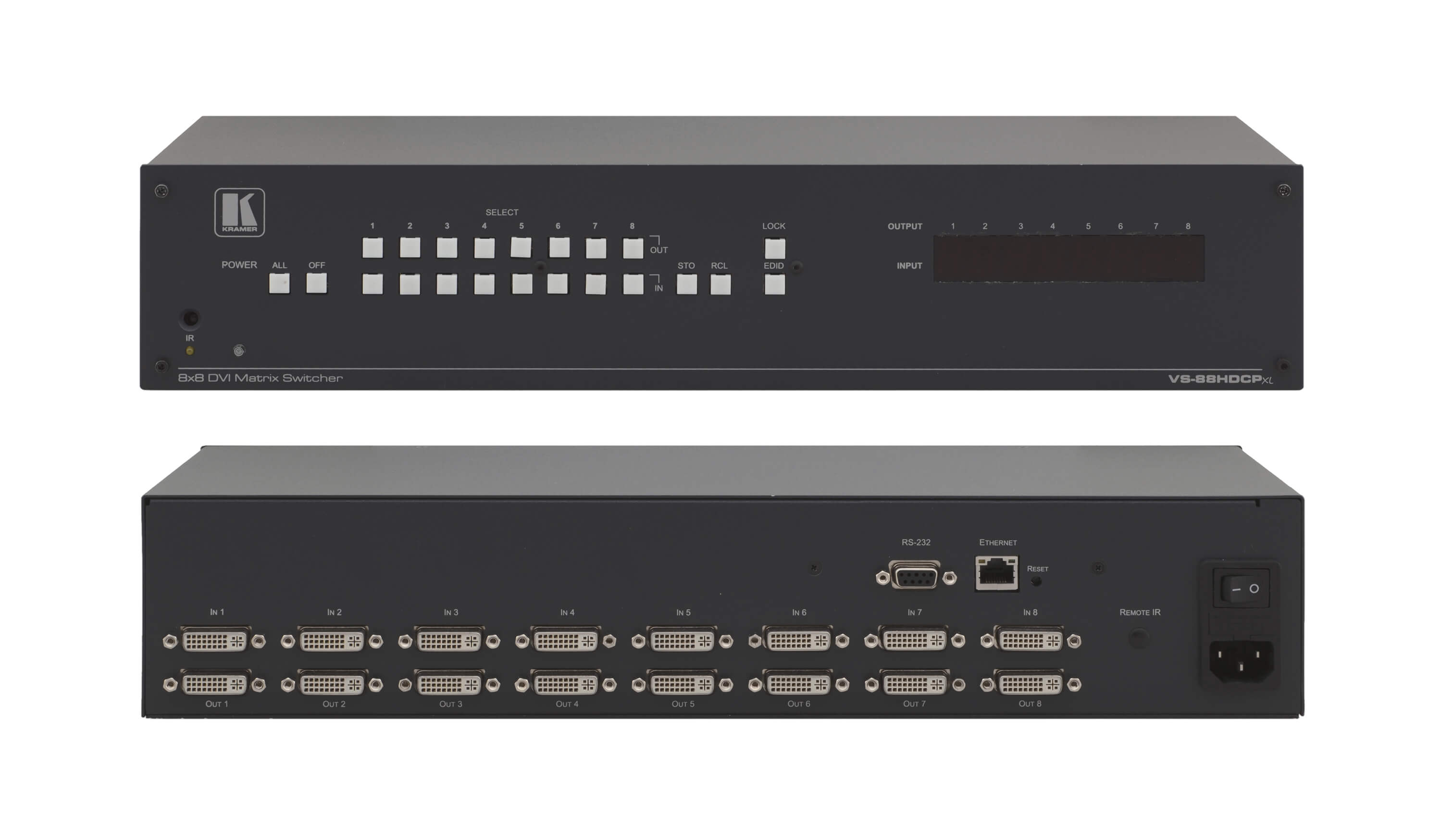

Kramer VS-88HDCPxl

8x8 DVI (HDCP) Matrix Switcher

  • Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
  • HDCP Compliant
  • 3D Pass–Through
  • I–EDIDPro™
  • Control — RS–232, Ethernet & IR
  • Managed by Kramer Network

Download Specsheet

The VS−88HDCPxl is a high−performance matrix switcher for DVI and HDMI signals on DVI−D connectors. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

  • Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
  • HDCP Compatible.
  • HDTV Compatible.
  • HDMI Support — Deep Color, x.v.Color™, 3D Pass–Through, HDMI Compressed Audio Channels.
  • EDID Capture — Copies and stores the EDID from a display device.
  • Output Disconnect — Each output.
  • Front Panel Control Lockout.
  • Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
  • Flexible Control Options — Front panel, IR remote, RS–232 (K–Router™ Windows®–based software is included), Ethernet (Windows®–based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
  • Worldwide Power Supply — 100–240V AC.

Inputs

  • 8 DVI–D connectors

Outputs

  • 8 DVI–D connectors

Bandwidth

  • 6.75Gbps (2.25Gbps per graphic channel)

Compliance With HDMI Standard

  • Supports DVI and HDCP

Resolution

  • Up to UXGA
  • 1080p

Power Consumption

  • 100–240V AC, 50/60Hz, 40VA

Controls

  • Front panel buttons, RS–232, Ethernet

Operating Temperature

  • 0° to +40°C (32° to 104°F)

Storage Temperature

  • –40° to +70°C (–40° to 158°F)

Humidity

  • 10% to 90%, RHL non–condensing

Included Accessories

  • Power cord, rack ears

Product Dimensions

  • 19" x 9.29 x 2U (43.6cm x 23.60cm x 8.80cm) W, D, H

Product Weight

  • 2.9kg (6.3lbs) approx.

Shipping Dimensions

  • 55.00cm x 34.00cm x 15.50cm (21.65" x 13.39" x 6.10" ) W, D, H

Shipping Weight

  • 4.0kg (8.7lbs) approx.

Applications

  • Conference room presentations.
  • Advertising.
  • Rental and staging.
