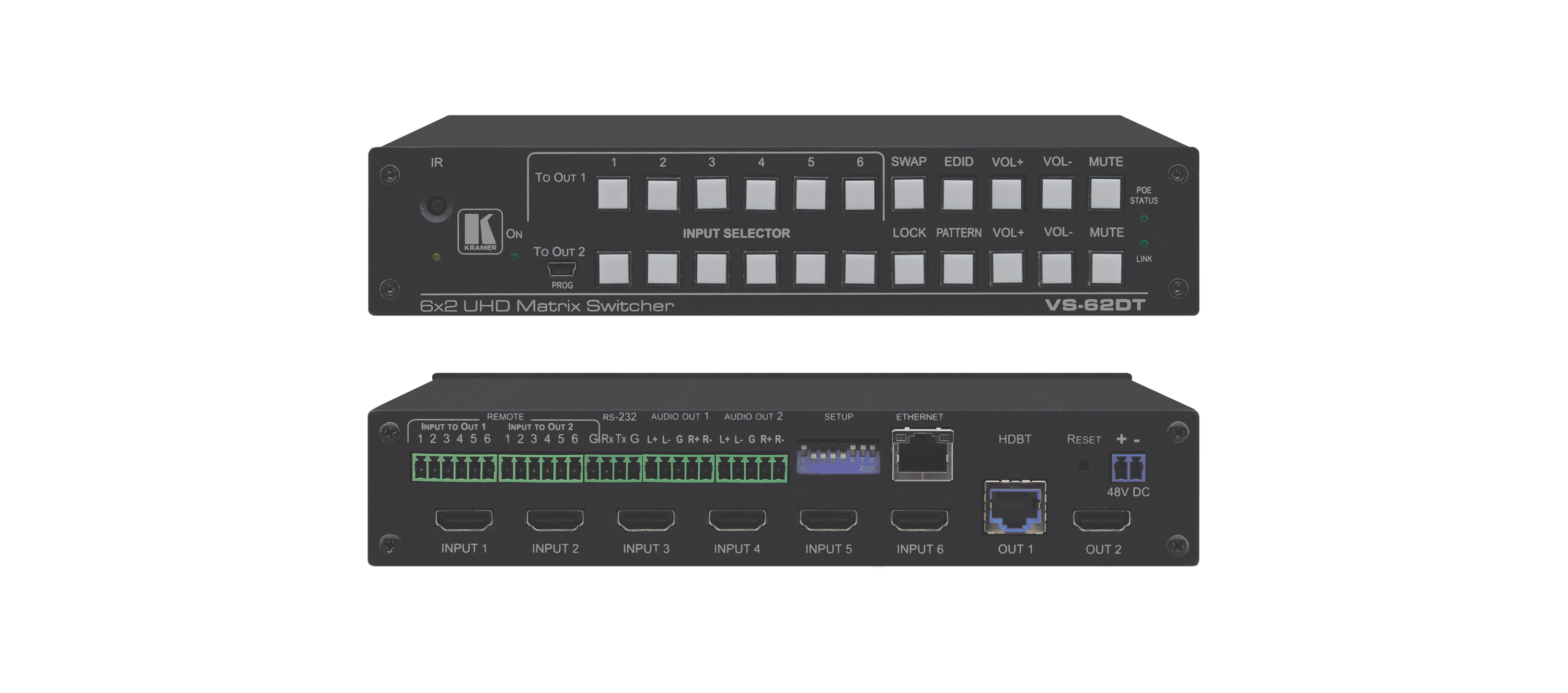

VS−62DT is a 6x2 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher with HDMI and HDBaseT output transmitters that provide long−reach video and audio transmission. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.
- Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
- Max. Resolution — 4K@60Hz (4:2:0).
- HDCP 1.4 Support.
- 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.
- Routing — Six HDMI inputs can be routed to an HDMI and HDBaseT output.
- Power–over–Ethernet — Supply of PoE to compatible receivers.
- EDID Capture — Copies and stores the EDID from a display device per input.
- Programmable Step–in Functionality — When used together with compatible step–in devices, such as the SID–X3N and DIP–31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
- True Video Clock Detection.
- Advanced Auto AV Switching — Last connected and priority switching modes.
- Non–Volatile EDID Storage.
- Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
- Lock Button — Prevents tampering with front panel buttons.
- Internal Pattern Generator.
- Kramer Protocol 3000 Support.
- Static or Dynamic DHCP IP Addressing.
- Flexible Control Options — Front panel buttons, RS–232, Ethernet, contact closure, embedded Web server and step–in.
- Mini–USB Port — For upgrading firmware.
