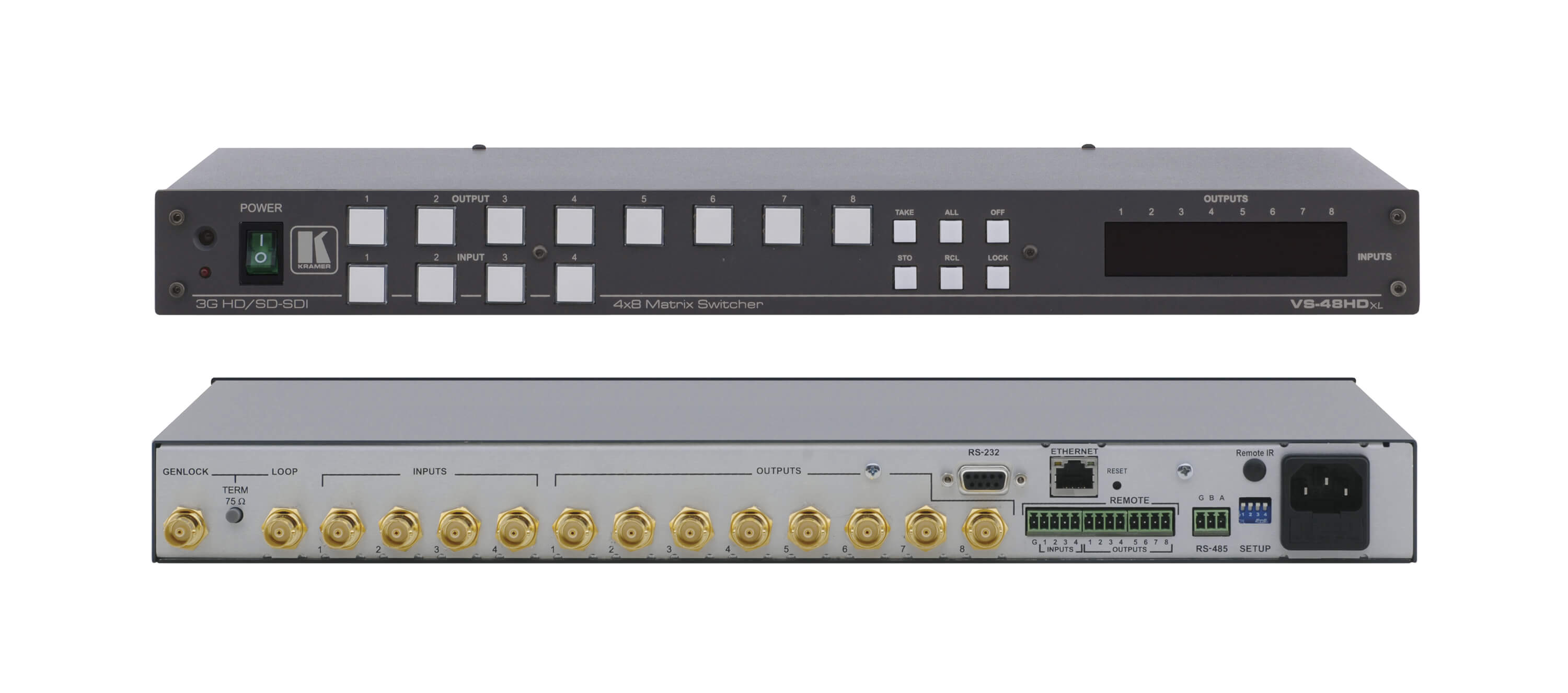

The VS-48HDxl is a high-performance matrix switcher for 3G HD-SDI video signals. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.
- Max. Data Rate — 3Gbps.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M), and Dual Link HD–SDI (SMPTE 372M).
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Switching Synchronization — Synchronizes either to external reference or incoming video.
- Active Input Type™ Reporting — Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high–definition (HD–SDI) input signal.
- Take Button — Executes multiple switches all at once.
- Multiple Memory Locations — Stores multiple switches as presets (salvos) to be recalled and executed when needed.
- Analog Sync Type — Bi–level, tri–level.
- Selectable Sync Signal Termination.
- Looping Sync Input
- Vertical Interval Switching — SMPTE RP–168.
- Front Panel Control Lockout.
- Flexible Control Options — Front Panel, RS–232 (K–Router™ Windows®–based software is included), RS–485, Ethernet, contact closure & IR remote (available upon request) .
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack “ears” included.
