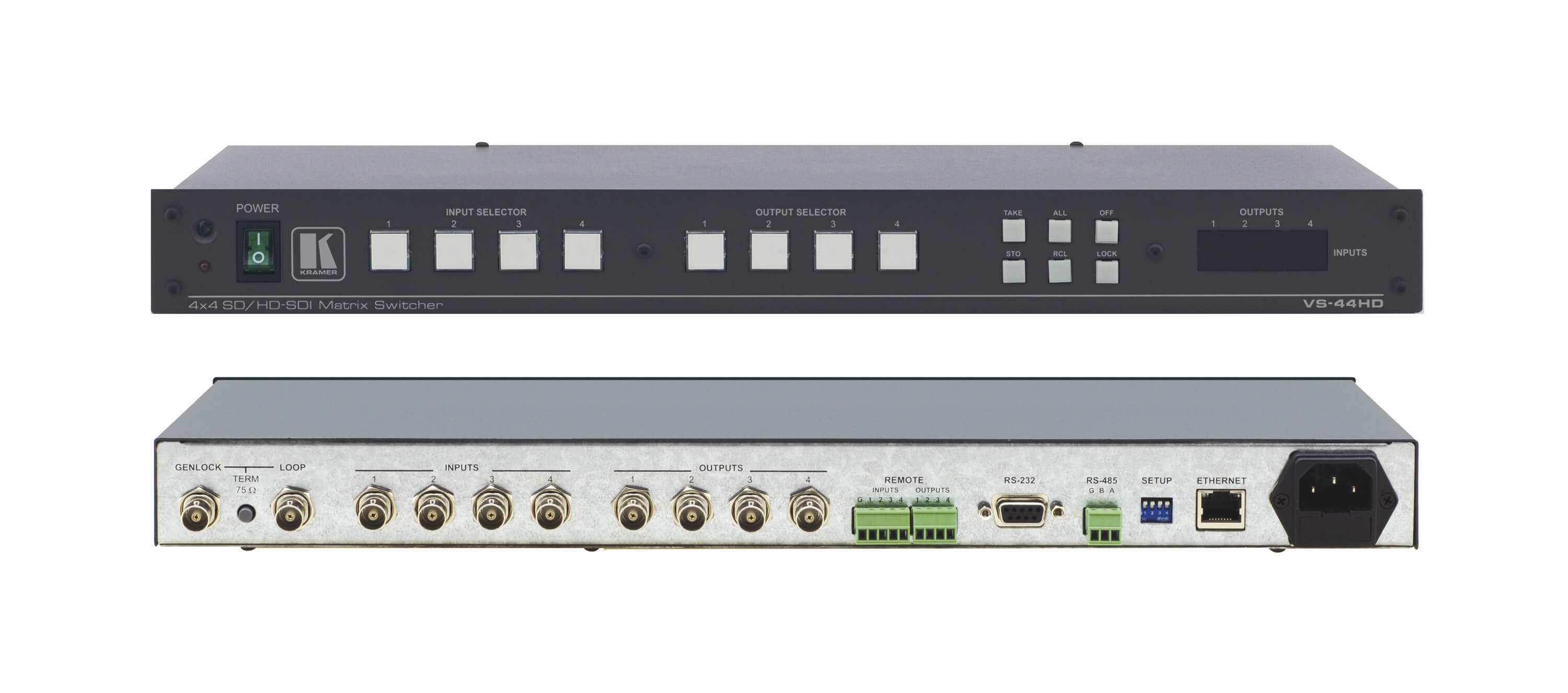

Kramer VS-44HD

4x4 HD–SDI Matrix Switcher

  • Max. Data Rate — 1.485 Gbps
  • Control — RS–232, RS–485, Contact Closure, Ethernet & IR

Download Specsheet

The VS−44HD is a high−performance 4x4 matrix switcher for HD−SD signals, as well as a dual link 2x2 matrix switcher. Switching is implemented during the vertical interval period according to the SMPTE RP−168 standard, when using synchronized digital video sources.

  • Max. Data Rate — 1.485Gbps.
  • HDTV Compatible.
  • Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M) & dual link (SMPTE 372M).
  • Reclocking & Equalization — Automatic.
  • Switching Synchronization — Synchronizes either to external reference or incoming video.
  • Active Input Type™ Reporting — Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD–SDI) input signal.
  • Memory Locations — Stores multiple switches as presets (salvos) to be recalled and executed when needed.
  • Take Button — Executes multiple switches all at once.
  • Control — Front Panel, RS–232 (K–Router™ Windows®–based software is included), RS–485, Ethernet, contact closure & IR remote (available upon request) .
  • Analog Sync Type — Bi–level, tri–level.
  • Selectable Sync Signal Termination.
  • Front Panel Control Lockout.
  • Vertical Interval Switching.
  • Worldwide Power Supply — 100–240V AC.
  • Standard 19” Rack Mount Size — 1U. Rack "ears" included.

Inputs

  • 4 SDI SMPTE–259M, 292M, 344M serial video, 75Ω on BNC connectors
  • 1 GENLOCK 75Ω/Hi–Z on a BNC connector

Outputs

  • 4 equalized and reclocked SMPTE–259M, 292M, 344M outputs 75Ω on BNC connectors
  • 1 looped GENLOCK 75Ω/Hi–Z on a BNC connector

Max. Output Level

  • 800mVpp/75Ω

Max. Data Rate

  • Up to 1.485Gbps

Controls

  • Front–panel, RS–232
  • RS–485, Ethernet, infrared remote, dry contact, and panel lock

Indicators

  • 4–character display on the front panel

Power Consumption

  • Universal, 100–240V AC, 50/60Hz, 22VA

Included Accessories

  • Power cord, IR remote, null–modem adapter

Product Dimensions

  • 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

Product Weight

  • 2.8kg (6.1lbs) approx.

Shipping Weight

  • 3.7kg (8.2lbs) approx.

Shipping Dimensions

  • 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

Applications

  • Professional broadcasting and production studios.
  • Presentation applications.
