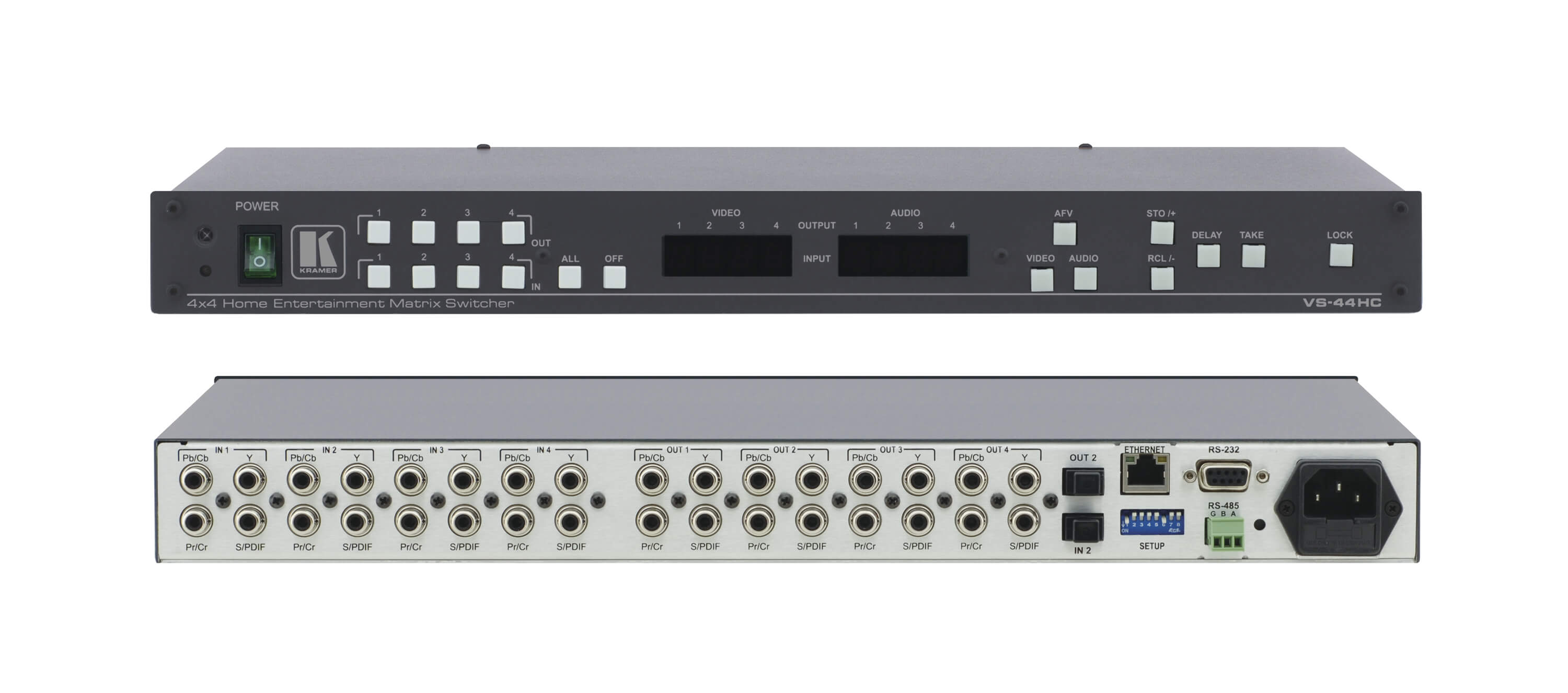

The VS-44HC is a high-performance matrix switcher for component video and S/PDIF audio signals. Designed primarily for home entertainment applications, it can route any or all inputs to any or all outputs simultaneously.
- High Bandwidth — 200MHz (–3dB).
- HDTV Compatible.
- TOSLINK® Audio Capability — Audio input 2 can accept either S/PDIF or TOSLINK® audio (selected via DIP–switches). If selected, both S/PDIF and TOSLINK® audio will be simultaneously available on audio output 2.
- Sampling Rates — Up to 192kHz.
- Programmable Audio Delay — Up to 999ms (depending on sample rate).
- Audio Breakaway Switching.
- Memory Locations — Stores multiple switches as presets (salvos) to be recalled and executed as needed.
- Take Button — Executes multiple switches all at once.
- Flexible Control Options — Front panel, RS–485, RS–232 (K–Router™ Windows®–based software is included), Ethernet, IR remote (available upon request) .
- Front Panel Lockout.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U.
