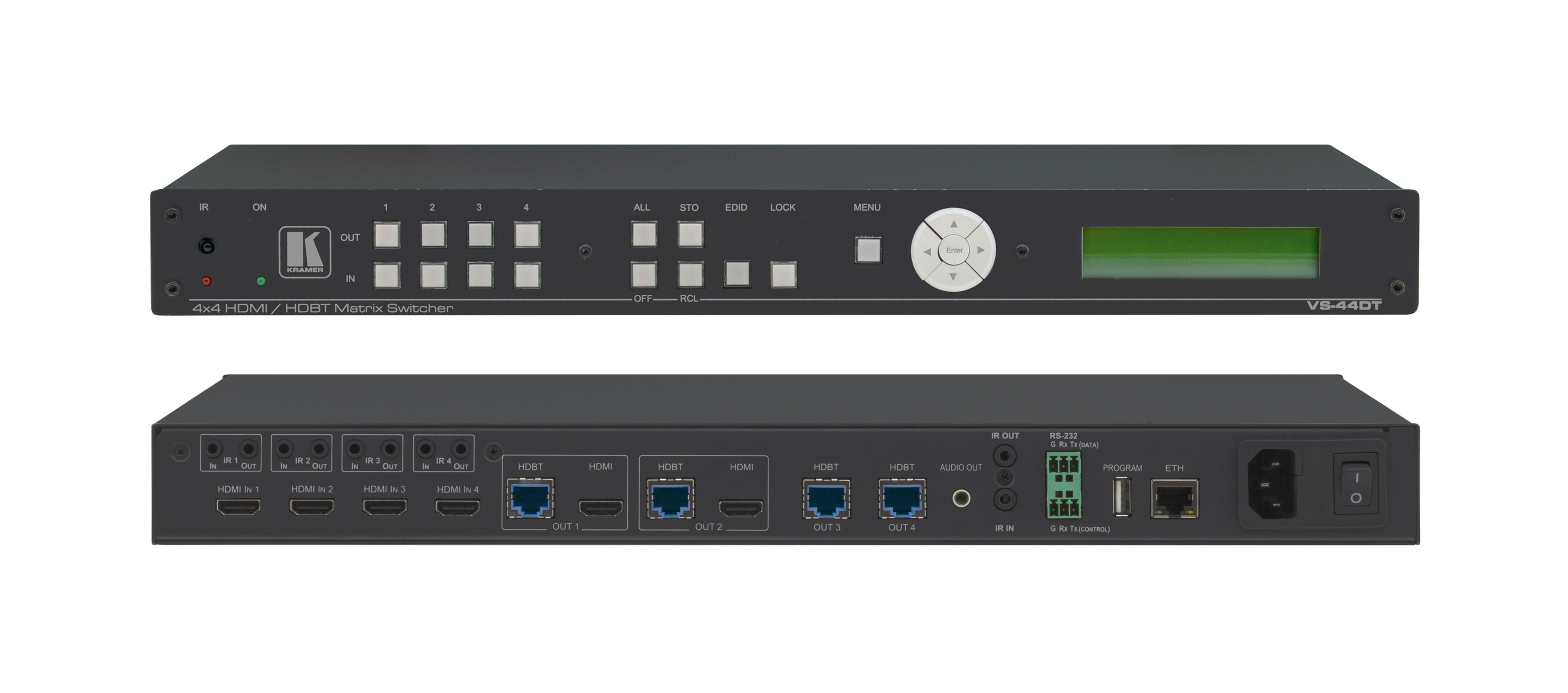

Kramer VS-44DT

4x4 4K60 4:2:0 HDMI/HDBaseT Extended–Reach PoE Matrix Switcher

  • 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher
  • Resolutions up to 4K@60Hz (4:2:0)
  • Managed by Kramer Network

Download Specsheet

VS−44DT is a 4x4 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher that transmits video, audio, Ethernet, RS−232 and IR signals over extended distances. The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS−232 network and control. The inputs can be routed to any or all of the four HDBaseT outputs, the first two of which also have simultaneous HDMI outputs. VS−44DT connects to compatible HDBaseT receivers such as, TP−780RXR, TP−580RXR and TP−588D. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.

  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  • Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
  • HDBaseT Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
  • Cables — For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VS–44DT.
  • HDBaseT Extension — Includes Video, Audio, Ethernet, RS–232 and IR signals.
  • Outputs — 4 HDBaseT with outputs 1 and 2 having simultaneous HDMI outputs.
  • PoE Support — PoE provider to HDBaseT receivers such as the TP–588D and TP–780RXR.
  • HDTV Compatible.
  • HDCP Compliant.
  • EDID Capture — Copies and stores the EDID from a display device.
  • HDMI Support — 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD® and 7.1 PCM.
  • Non–Volatile Memory — Stores and recalls preset matrix configurations.
  • Automatic Output Shutdown — If no input signal is detected after a configurable idle period.
  • Kramer Protocol 3000 Support.
  • Lock Button — Prevents unwanted tampering with the settings.
  • Flexible Control Options — Embedded Web server and RS–232.
  • Worldwide Power Supply — 100–240V AC.

Inputs

  • 4 HDMI on HDMI connectors, 5 IR on 3.5mm mini jack connectors

Outputs

  • 2 HDMI connectors, 4 HDBaseT on RJ–45 connectors, 5 IR on 3.5mm mini jack connectors, 1 unbalanced stereo audio on a 3.5mm mini jack connector

Ports

  • 1 Ethernet on an RJ–45 connector, 1 program on a USB connector, 1 RS–232 control on a 3–pin terminal block, 1 RS–232 data on a 3–pin terminal block

Max. Data Rate

  • 10.2Gbps (3.4Gbps per graphic channel)

Supported Resolutions

  • VGA to WUXGA (reduced blanking), 4Kx2K @30Hz with Deep Color up to 36bpp

HDMI Range

  • 15m (49ft) @ 8bit resolution, 10m (33ft) @ 12 bit resolution

HDBaseT Range

  • 100m (328ft) 4K @30Hz 180m (590ft) 1080 @60Hz@24bpp

Power Consumption

  • 100–240V AC, 50/60Hz, 60VA

Operating Temperature

  • 0° to +40°C (32° to 104°F)

Storage Temperature

  • –40° to +70°C (–40° to 158°F)

Humidity

  • 10% to 90%, RHL non–condensing

Cooling

  • Fan

Enclosure Type

  • Aluminum chassis

Vibration

  • ISTA 1A in carton (International Safe Transit Association)

Safety Regulatory Compliance

  • CE

Environmental Regulatory Compliance

  • Complies with appropriate requirements of RoHs and WEEE

Included Accessories

  • Rack “ears” and IR blaster

Product Dimensions

  • 19" x 13.90 x 1U (43.6cm x 35.30cm x 4.36cm) W, D, H

Product Weight

  • 3.3kg (7.3lbs) approx.

Shipping Dimensions

  • 54.30cm x 44.20cm x 10.70cm (21.38" x 17.40" x 4.21" ) W, D, H

Shipping Weight

  • 4.1kg (9.0lbs) approx.

Applications

  • Event rooms
  • Large conference rooms
  • Lecture halls
