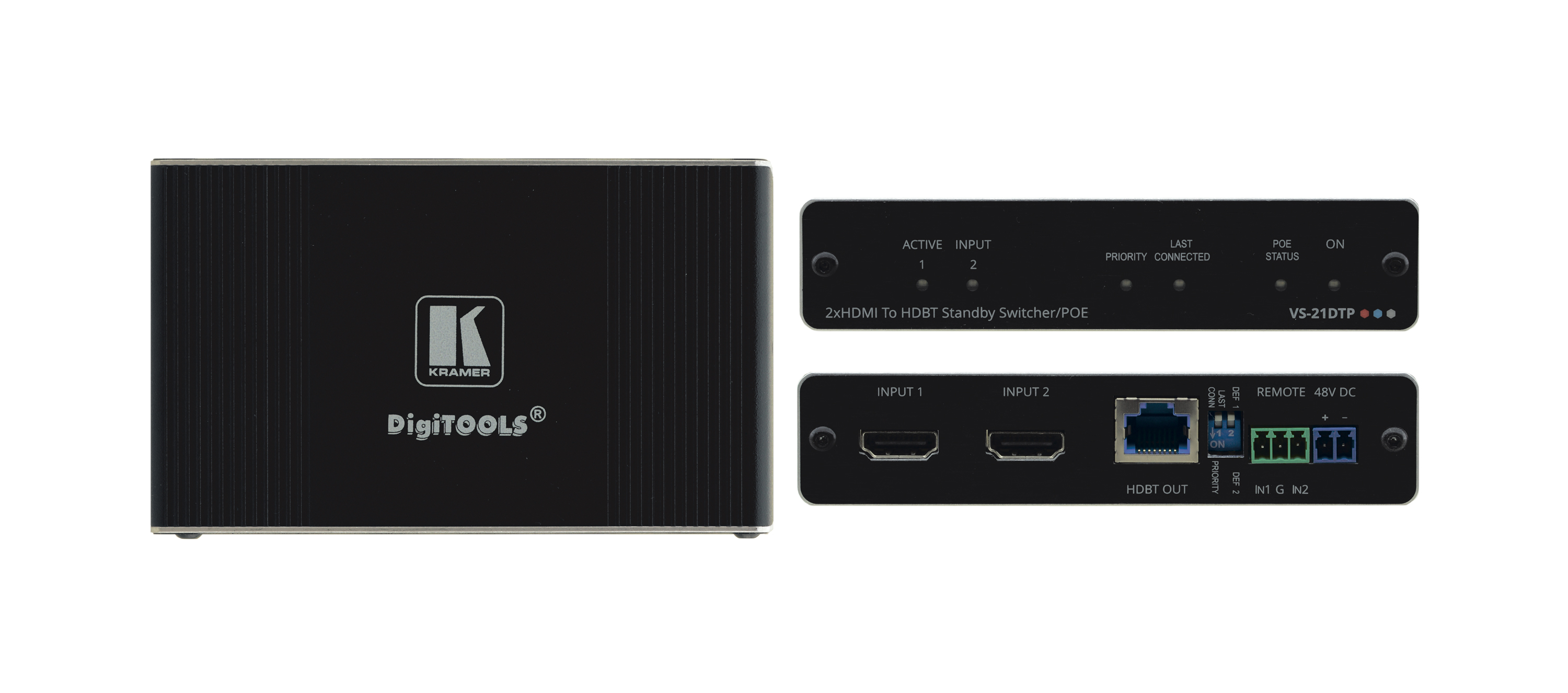

Kramer VS-21DTP

2x1 4K60 4:2:0 HDCP 2.2 HDMI Auto Switcher with Bidirectional PoE over HDBaseT

Max. Data Rate — 8.91Gbps
4K@60Hz (4:2:0) resolution support
HDCP 2.2 compliant
Receiver and Provider of PoE over HDBaseT

‍

Download Specsheet



VS−21DTP is a high−performance automatic switcher for 4K, HDBaseT, HDMI, HDCP 2.2 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection. VS−21DTP is a PoE provider that provides power over Ethernet to compatible PoE receivers and it can also receive power from a compatible PoE provider.

Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
Max. Resolution — 4K@60Hz (4:2:0).
HDCP 2.2 Compliant.
Supports up to 40m reach at 4K@60Hz (4:2:0).
Kramer Equalization and re–Klocking Technology.
HDTV Compatible.
3D Pass–Though.
Bidirectional PoE over HDBaseT

‍

Inputs

2 HDMI: On female HDMI connectors

Outputs

1 HDBT: On an RJ–45 connector

Video

Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
Max. Resolution: 4K@60Hz (4:2:0)
Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4)

User Interface

Controls: DIP–switches for selecting switching mode (Priority/Last Connected), contact closure connectors for remote control switches
Indicators: Active input, switching mode (Priority/Last Connected), PoE and ON

Power

Source: PoE over HDBaseT or 48V DC
Consumption: 390mA

Regulatory Certification

EMC EN 55032
IEC 60950–1(ed.2)
IEC 60950–1(ed.2)am1
IEC 60950–1(ed.2)am2

Environmental Conditions

Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing

Accessories

Included: 48V DC desktop power supply

Product Dimensions

12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

Product Weight

0.2kg (0.4lbs) approx.

Shipping Dimensions

15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

Shipping weight

0.5kg (1.1lbs) approx.

‍

Applications

Classrooms
Huddle rooms
Training rooms

‍
