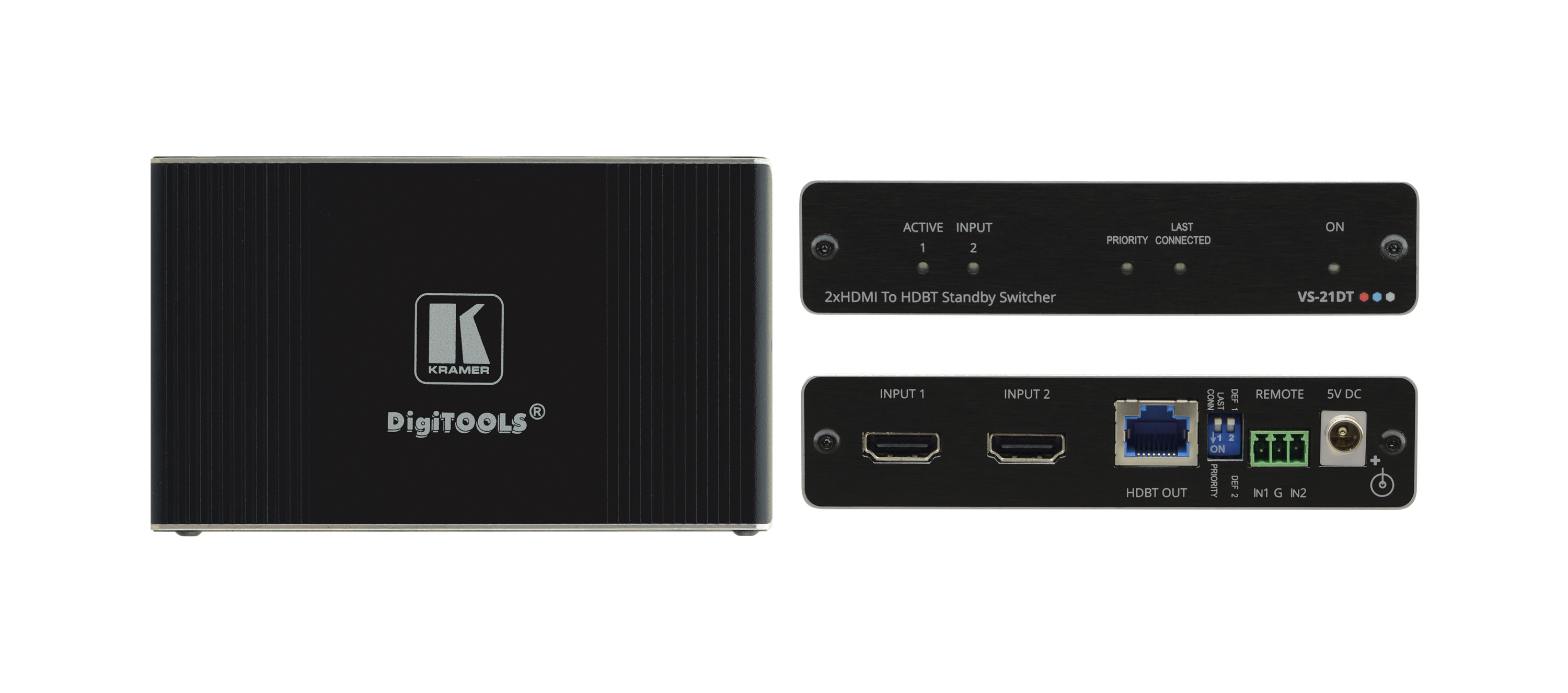

Kramer VS-21DT

Inputs

• 2 HDMI: On female HDMI connectors

Outputs

• 1 HDBT 1.0: On an RJ–45 connector

Video

• Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
• Max. Resolution: 4K@60Hz (4:2:0)
• Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4)

User Interface

• Controls: DIP–switches for selecting switching mode (Priority/Last Connected), contact closure connectors for remote control switches
• Indicators: Active input, switching mode (Priority/Last Connected) and ON

Power

• Source: 5V DC
• Consumption: 1A

Regulatory Certification

• EMC EN 55032
• IEC 60950–1(ed.2)
• IEC 60950–1(ed.2)am1
• IEC 60950–1(ed.2)am2

Environmental Conditions

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

Accessories

• Included: 5V DC power adapter

Product Dimensions

• 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

Product Weight

• 0.2kg (0.4lbs) approx.

Shipping Dimensions

• 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H

Shipping Weight

• 0.5kg (1.1lbs)

‍
