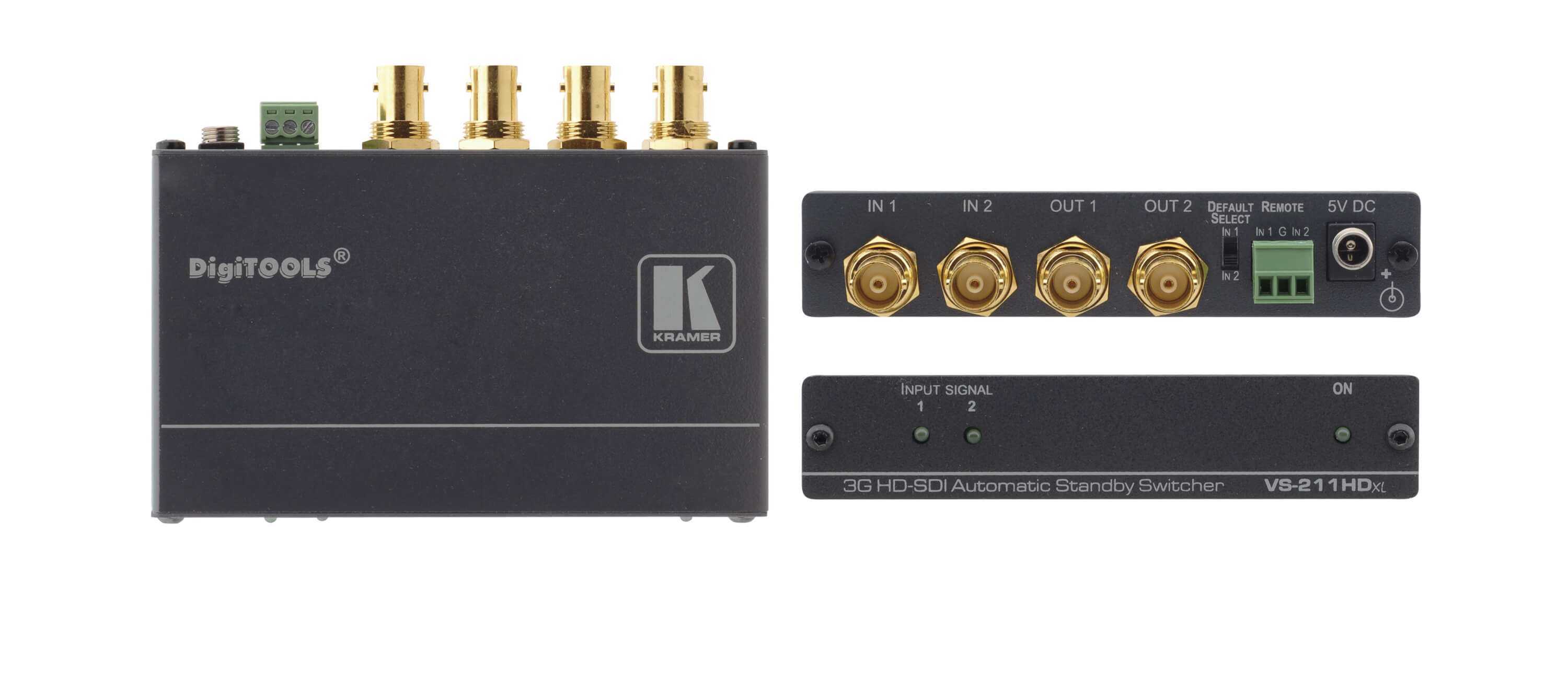

Kramer VS-211HDxl

2x1:2 SDI Auto Switcher

Max. Data Rate — 3Gbps
SDI, HD–SDI & 3G HD–SDI
Contact Closure or automatic switching

‍

Download Specsheet



The VS−211HDxl is a high−performance automatic switcher for 3G HD−SDI video signals. When configured as a standby switcher, it switches to the secondary input when the primary input is lost.

Max. Data Rate — 3Gbps.
Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) & 3G HD–SDI (SMPTE 424M).
HDTV Compatible.
Control — Contact closure or automatic switching.
Automatic Standby Switching — Switches from the secondary input to the primary input when a primary signal is detected.
Primary Input — Selectable.
Active Input LED Indicators.
Compact DigiTOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

‍

Inputs

2 SD/HD/3G HD–SDI video on BNC connectors

Outputs

2 SD/HD/3G HD–SDI video on BNC connectors

Max. Output Level

800mVpp/75Ω

Data Rate

Up to 2.97Gbps

Controls

Contact closure remote control, input default selection switch

Coupling

AC

Power Consumption

5V DC, 400mA

Included Accessories

Power supply, mounting bracket

Product Dimensions

12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

Product Weight

0.2kg (0.4lbs) approx.

Shipping Dimensions

49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H

Shipping Weight

0.6kg (1.3lbs) approx.

‍

Applications

Backup switching for broadcast.
Post–production.

‍
