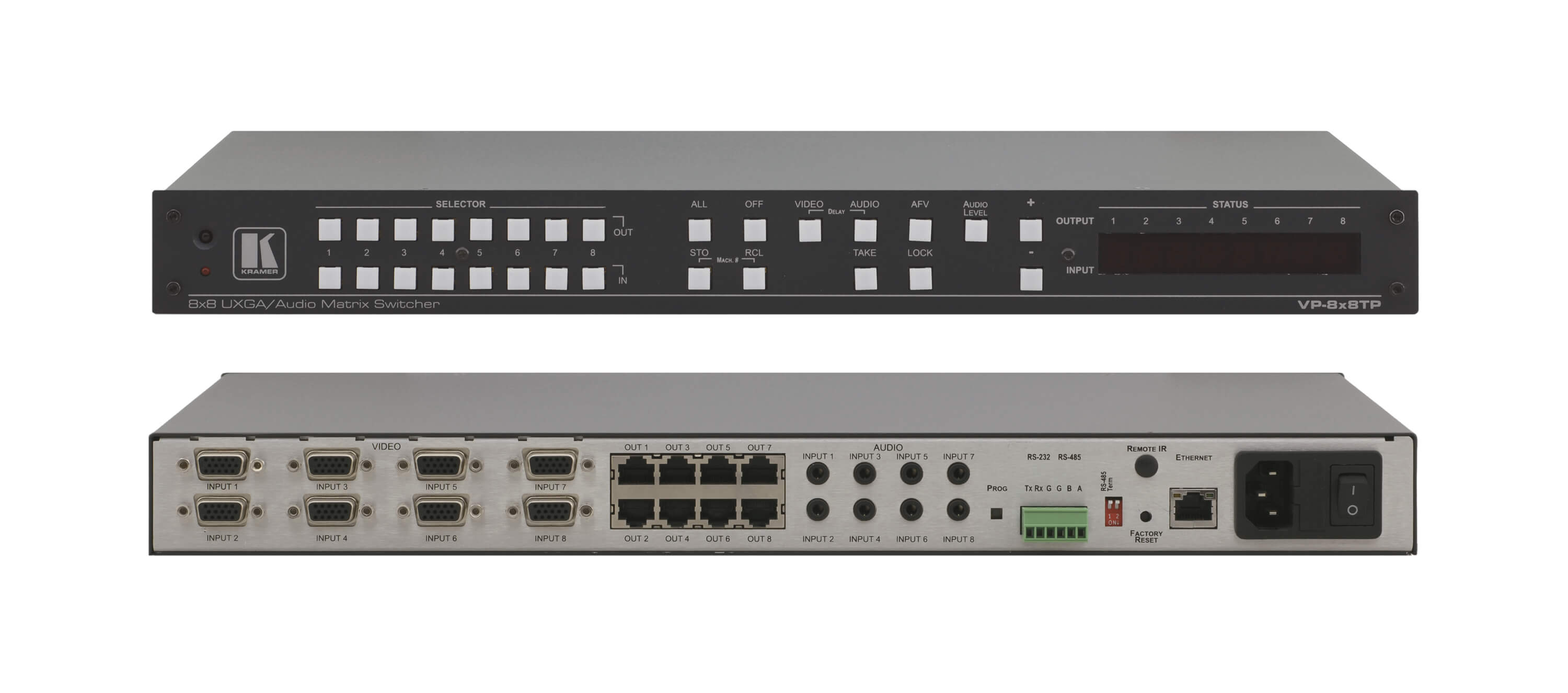

Kramer VP-8x8TP

8x8 Computer Graphics Video & Stereo Audio over Twisted Pair Matrix Switcher

  • Resolution — Up to UXGA
  • Delayed Switching™ — Up to a 3.5s
  • Kr–isp® Advanced Sync Processing
  • Control — RS–232, RS–485, IR & Ethernet
  • Managed by Kramer Network

Download Specsheet

The VP-8x8TP is a high-performance matrix switcher for computer graphics video and stereo audio signals. The unit routes any or all inputs to any or all twisted pair outputs. A compatible twisted pair receiver converts each output signal back to the original input formats.

  • High Resolution — Up to UXGA/1080p.
  • HDTV Compatible.
  • Active Input Indication™ Reporting — Each input button on the front panel automatically lights when the unit detects a video signal on that input. When an input is selected for switching, the button changes to a different color to indicate it is the active input.
  • Delayed Switching™ — Up to a 3.5s (user selectable) delay for clean switching.
  • Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
  • Power Connect™ Feature — A single connection to the transmitter (only) powers both units when the devices are within 150ft (50m) of each other.
  • Configurable EDID — For each input, via RS–232.
  • Take Button — Executes multiple switches all at once.
  • Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
  • Audio Breakaway Switching.
  • System Range — Over 100m (330ft) transmission range between the switcher and the TP receiver.
  • Audio Level Controls — For adjusting the signal level of each input.
  • Front Panel Lockout.
  • Flexible Control Options — Front panel, RS–232 and RS–485 (using Kramer Protocols 2000 and 3000), IR remote and optional extension cable, Ethernet with built in Web server.
  • Worldwide Power Supply — 100–240V AC.
  • Standard 19” Rack Mount Size — 1U. Rack "ears" included.

Inputs

  • 8 UXGA on 15–pin HD connectors, 8 unbalanced stereo audio on 3.5mm mini jacks

Outputs

  • 8 RJ–45 connectors

Max. Output Level

  • Video: 1.9Vpp
  • Audio: 3Vpp

Resolution

  • Up to UXGA, 1080p

Audio Bandwidth

  • 18kHz (–3dB)

Diff. Gain

  • 1.8%

Diff. Phase

  • 0.3Deg

K-Factor

  • <0.05%

S/N Ratio

  • Video: 60dB @5MHz
  • Audio: 81dB @1kHz

Crosstalk (All Hostile)

  • Video: — 46dB @5MHz
  • Audio: <–72dB @1kHz

Controls

  • Front panel buttons, RS–232, RS–485, Ethernet, infrared

Coupling

  • Video/audio: AC

Audio THD + Noise

  • 0.035% @1kHz

Audio 2ND Harmonic

  • 0.002% @1kHz

Transmission Range

  • >100m (330ft)

Operating Temperature

  • 0° to +40°C (32° to 104°F)

Storage Temperature

  • –40° to +70°C (–40° to 158°F)

Humidity

  • 10% to 90%, RHL non–condensing

Power Consumption

  • 100–240V AC, 68VA

Included Accessories

  • Power cord, Windows® based control software, external remote IR receiver cable, rack "ears"

Product Dimensions

  • 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

Product Weight

  • 2.6kg (5.7lbs) approx.

Shipping Dimensions

  • 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

Shipping Weight

  • 2.7kg (6.0lbs) approx.

Applications

  • Long range multimedia and presentation source and acceptor selection.
  • Professional display systems requiring a true 8x8 computer graphics and audio matrix operation.
