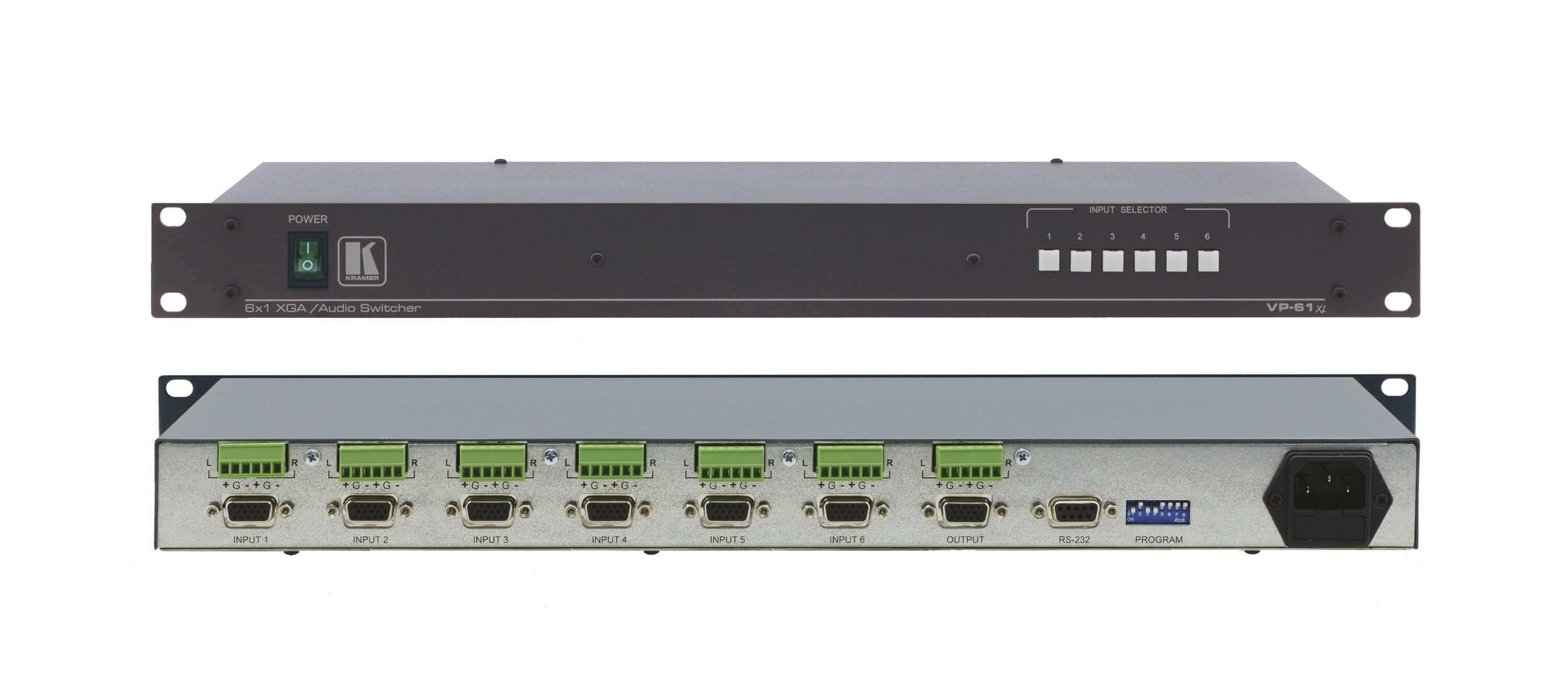

Kramer VP-61xl

6x1 Computer Graphics Video & Balanced Stereo Audio Switcher

Bandwidth — 400MHz (–3dB) Control — RS–232

‍

Download Specsheet



The VP-61xl is a high-performance switcher for computer graphics video signals, with resolutions ranging from VGA through UXGA and higher, and balanced stereo audio signals. The VP-61N has all the same features of the VP-61xl but without audio.

High Bandwidth — 400MHz (–3dB).
HDTV Compatible.
Control — Front panel & RS–232 (K–Router™ Windows®–based Kramer software is included).
Standard 19” Rack Mount Size — 1U.

‍

Input

6 analog red, green, blue signals: 0.7Vpp/75Ω, H & V syncs, TTL level on 15–pin HD (F) connectors
6 balanced audio stereo signals, +4dBu typical, 24dBu max. on detachable terminal blocks

Output

1 analog red, green, blue signal: 0.7Vpp/75Ω, H & V syncs, TTL level on a 15–pin HD (F) connector
1 balanced audio stereo signal, +4dBu typical, 24dBu max. on a detachable terminal block

Bandwidth (-3DB)

400MHz (video)
100kHz (audio)

Switch Time

Less than 5ms

Switch Control

Six electronic illuminated touch switches with electronic interlock. RS–232 via an additional 9–pin D–sub connector on rear panel

Coupling

Direct

Power Consumption

230V AC, 50/60Hz, (115V AC, USA) 3VA

Included Accessories

Power cord, Windows®–based Kramer control software

Product Dimensions

19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H

Product Weight

2.8kg (6.3lbs) approx.

Shipping Dimensions

55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

Shipping Weight

3.7kg (8.2lbs) approx.

‍

Applications

Any professional display system requiring simple six way input selection.
Multimedia and presentation source selection.
Remote monitoring of computer activity in schools and businesses.
Rugged enclosure and standard AC power cable are suitable for rental/staging applications.

‍
