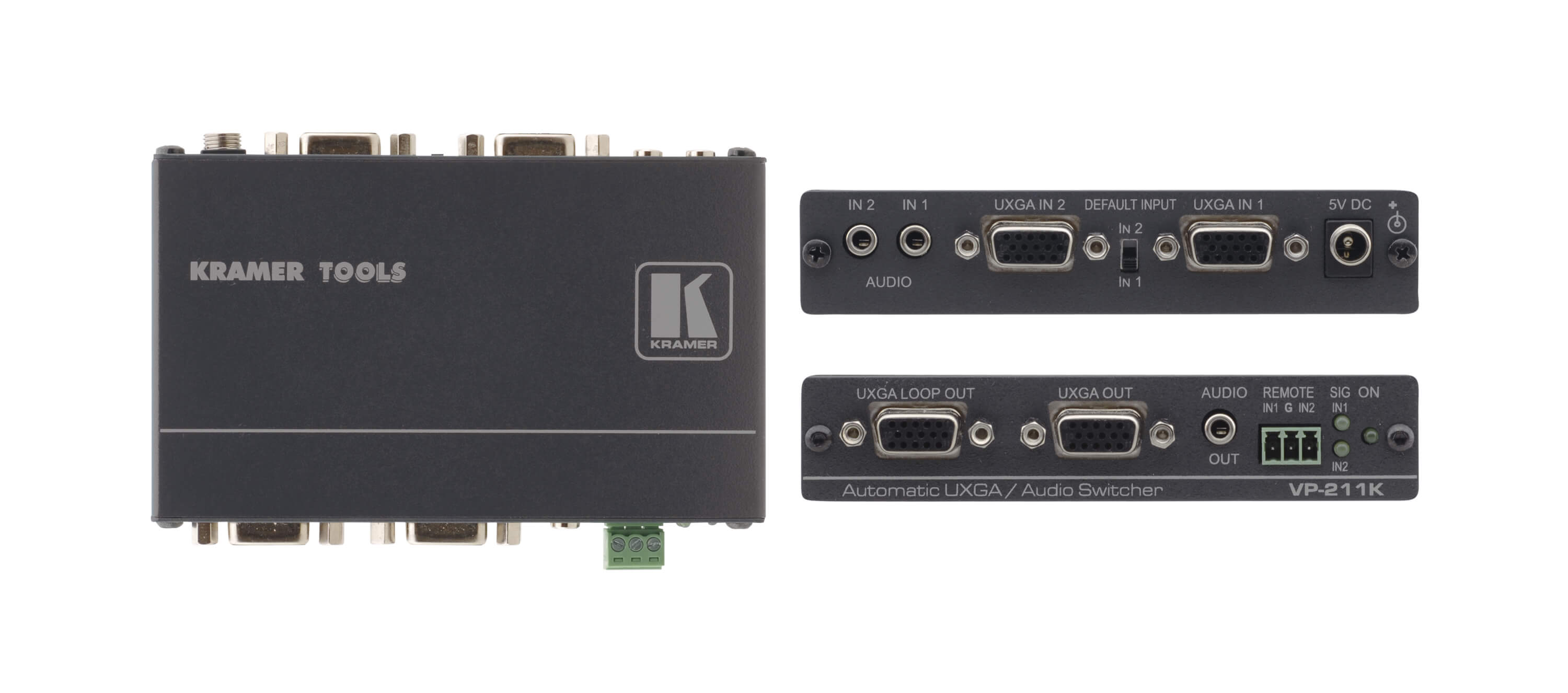

Kramer VP-211K

2x1 Computer Graphics Video & Stereo Audio Standby Switcher

  • Bandwidth — 300MHz (–3dB)
  • Kr–isp® Sync Processing
  • Standby Switching Control — Automatic & Contact Closure
  • Looping Input — Input 1

Download Specsheet

The VP−211K is a high−performance switcher for computer graphics video signals, with resolutions up to and exceeding UXGA, and unbalanced stereo audio signals. When configured as a standby switcher, it switches to the secondary input upon loss of the primary input. Note: Supply is Limited

  • High Bandwidth — 300MHz (–3dB).
  • Looping Input — Input 1.
  • Automatic Standby Switching — Switches from secondary input to primary input when a signal is detected.
  • Control — Automatic or contact closure.
  • Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
  • Primary Input — Selectable.
  • Active Input LED Indicators.

Inputs

  • 2 computer graphics video with loop on 15–pin HD connectors, 2 unbalanced stereo audio on 3.5mm mini jacks

Outputs

  • 1 computer graphics video on a 15–pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack

Max. Output Level

  • Video: 1.6Vpp
  • Audio: >10.5Vpp

Bandwidth (-3DB)

  • Video: 300MHz
  • Audio: >100kHz

Diff. Gain

  • 0.03%

Diff. Phase

  • 0.03Deg

K-Factor

  • <0.05%

S/N Ratio

  • Video: 71dB
  • Audio: 71dB weighted

Crosstalk

  • Video: — 59dB @5MHz
  • Audio: <–66dB @1kHz

Controls

  • Contact closure remote control, input default selection switch

Coupling

  • DC

Audio THD + Noise

  • <0.032%

Audio 2ND Harmonic

  • <0.004%

Power Consumption

  • 5V DC, 200mA

Included Accessories

  • Power supply, mounting bracket

Product Dimensions

  • 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

Product Weight

  • 0.2kg (0.4lbs) approx.

Shipping Dimensions

  • 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H

Shipping Weight

  • 0.5kg (1.2lbs) approx.

Applications

  • Automatic computer and presentation UXGA routing.
  • Presentation systems with wall plates.
