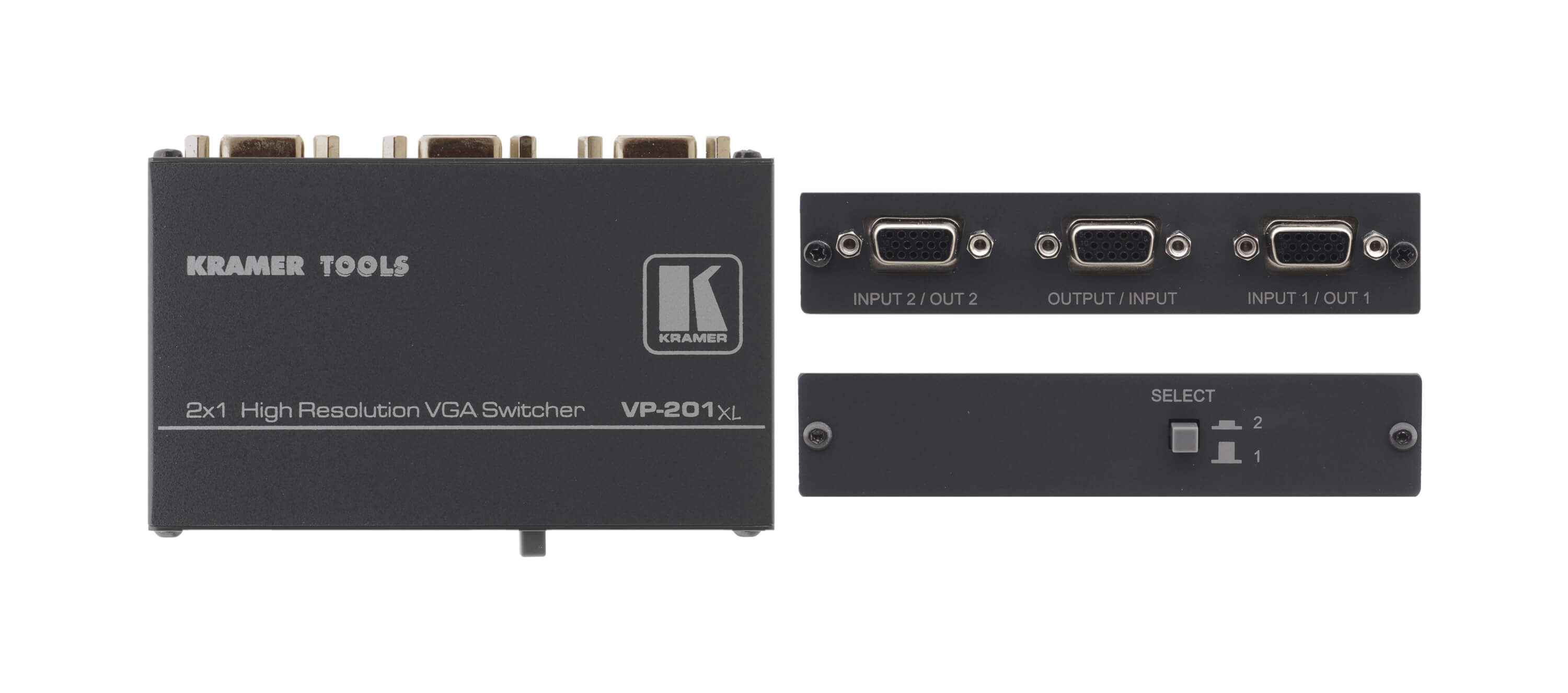

Kramer VP-201xl

2x1 Computer Graphics Video Mechanical Switcher

Bandwidth — 1300MHz (–3dB)
Mechanical Switcher

‍

Download Specsheet



The VP−201xl is a high−performance switcher for computer graphics video signals with resolutions up to and exceeding UXGA. It switches either of two signals to a single output.

High Bandwidth — 1300MHz (–3dB).
HDTV Compatible.
Mechanical (Passive) Switching — No power required.
Bidirectional Operation — Can be used as a 2x1 switcher (2 inputs, 1 output) or a 1x2 switcher (1 input, 2 outputs).

‍

Inputs

2 analog red, green, blue signals, 0.7Vpp/75Ω, H & V sync, TTL level, on 15–pin HD (F) connectors

Outputs

1 analog red, green, blue signals, 0.7Vpp/75Ω, H & V sync, TTL level, on 15–pin HD (F) connector

Video Bandwidth (-3DB)

1300MHz

Switching Method

Mechanical

Included Accessories

Mounting bracket

Product Dimensions

12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

Product Weight

0.1kg (0.3lbs) approx.

Shipping Dimensions

15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

Shipping Weight

0.4kg (0.8lbs) approx.

‍

Applications

Any presentation system requiring simple two–way VGA/XGA switching.
Schools, churches.
Rental/staging.
Can be used for video, component, or other signals with BNC breakout cables.

‍
