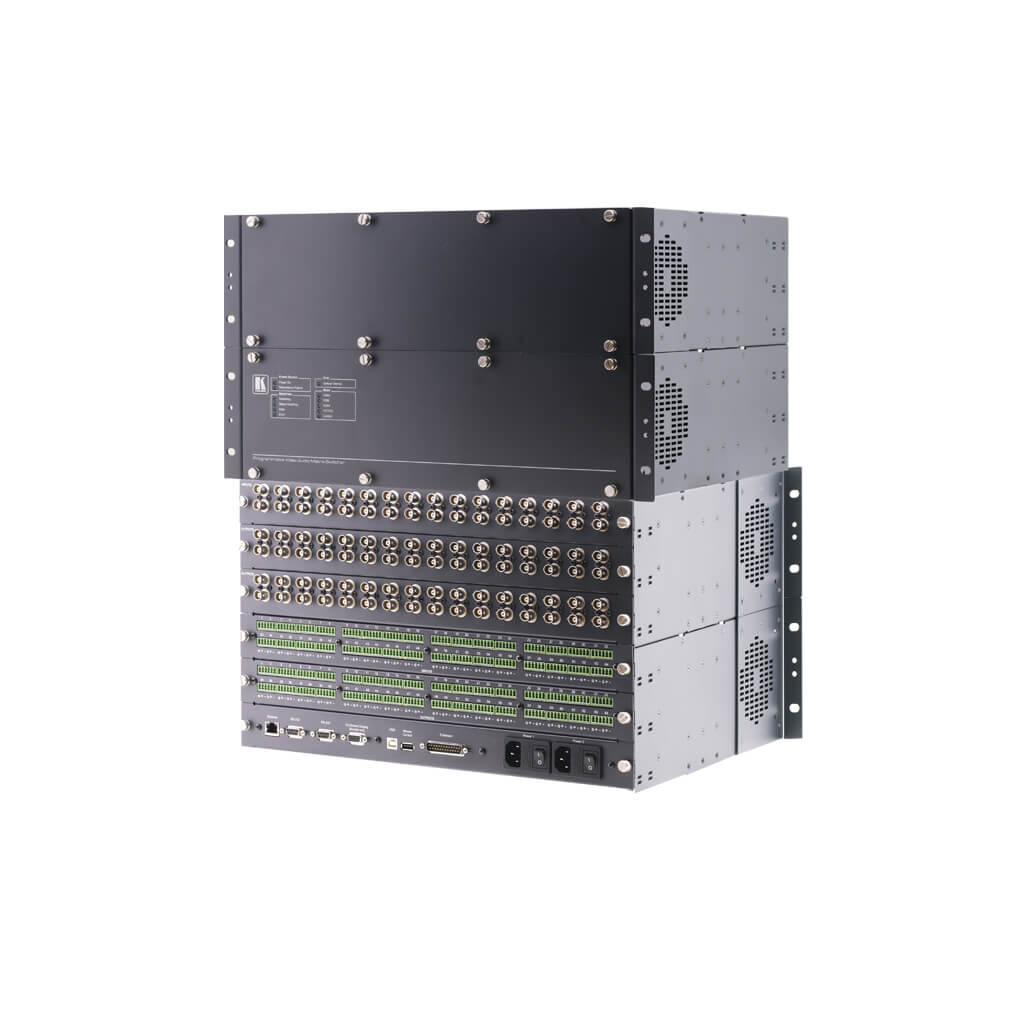

Kramer TailorMade

Multi–Format Video Matrix Switchers with or without Stereo Audio

Bandwidth — 100MHz
3, 6, 9 & 12RU Frames
Modular Design
Control — RS–232 & RS–485

‍

Download Specsheet



TailorMade are high−performance switchers for composite video, s−Video (Y/C), component video, and RGBHV video signals on BNC connectors with or without balanced or unbalanced stereo audio signals. The modular design allows the user to configure a router to any system requirements by using different sets of input/output modules that populate the same frame.

High Bandwidth — 100MHz (–3dB) fully loaded.
Control — Front panel, RS–232, RS–485.
Vertical Interval Switching Module — Optional.
Audio Breakaway Switching.

‍

Video Bandwidth (-3DB)

100MHz (typical) on BNC connectors, 1Vpp/75Ω

Audio Bandwidth (-3DB)

24kHz

Audio Input Level Control

–22dB to +10dB via RS–232

Balanced/Unbalanced

3kΩ/10kΩ selectable individually via RS–232

In-Out Delay

35nS

Diff. Phase

0.5Deg

Diff.Gain

0.5%

Max. Video Level

1.6Vpp

Video S/N Ratio

70dB

Audio S/N Ratio

90dB

Video Crosstalk

–60dB adjacent channels, — 75dB remote channels (at 4.43MHz)

Audio Crosstalk

–85dB @20kHz

Control

PC, control unit

THD+Noise

0.05%

Power Consumption

230V AC, 50/60Hz, (115V AC, USA)

Included Accessories

Power cord

Options

Vertical interval switching module

‍

Applications

Presentation and production applications.
