Kramer SM40NU-3

HighSecLabs Secure 4–Port KM Switch

  • Highest Security by Design

Download Specsheet

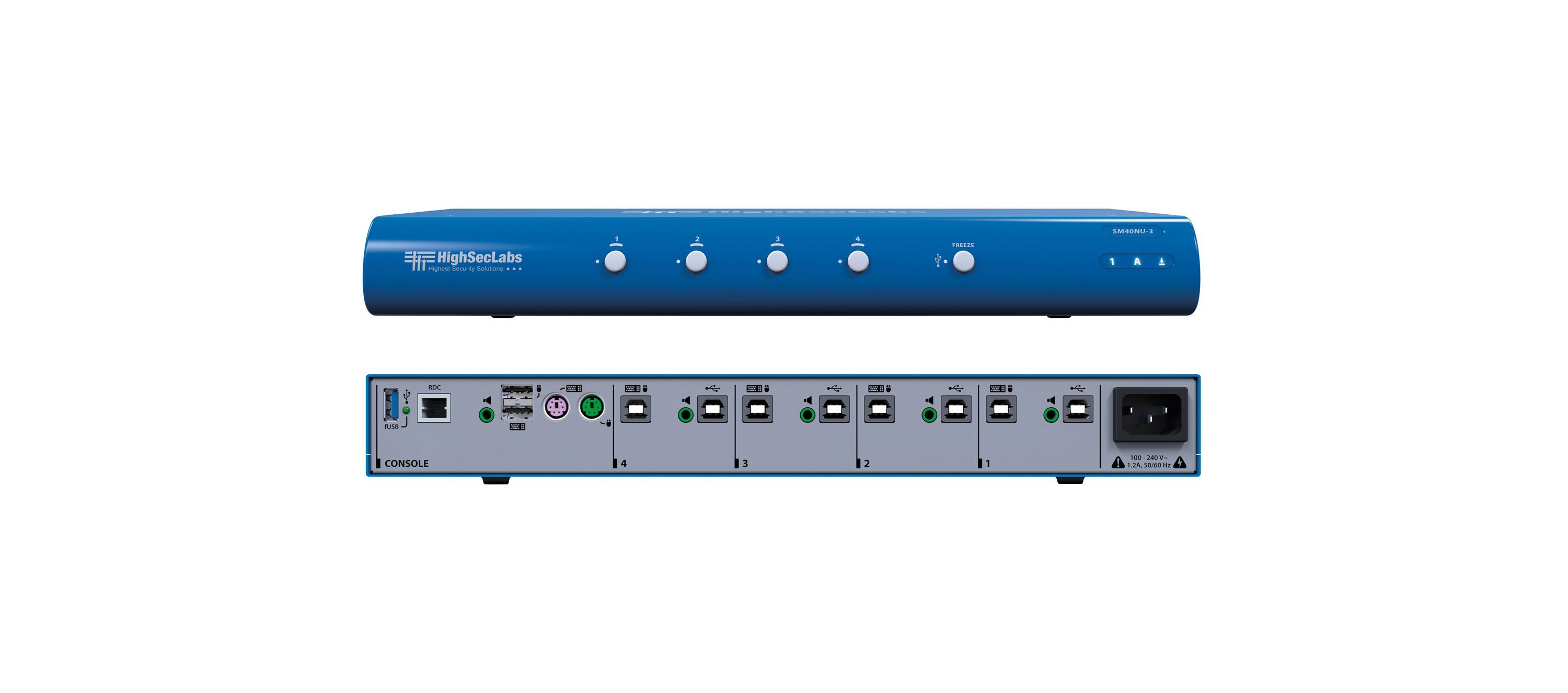

SM40NU−3 is a secure 4−port KM switch. It enables users to share peripherals – keyboard, mouse, audio and USB − between four different security−level networks/computers while isolating all hosts and protecting against data leakage and malicious attacks through shared peripherals. It also enables assigning a USB port to a specific computer while switching other peripherals, such as when a USB smart card reader must remain mapped to a certain computer. SM40NU−3 provides the highest possible isolation between connected computers and is NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certified.

  • Highest Security by Design — NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certification for peripheral Sharing Switch (PSS) devices.
  • Work Freely Without Compromising Security — Control classified and non–classified computers without compromising security.
  • Prevent Information Leaks — Block peripheral exploits, information leaks, eavesdropping, signal transmission, computer malware, hardware and firmware tampering.
  • Filter USB Peripherals — Allow or block specific USB devices based on VID/PID characteristics.
  • Smooth Switching Between Computers (Virtual Display Technology) — Automatically switch all peripheral control from one computer to another by dragging the cursor between each computer’s display border.
  • Keyboard Lock Indication — Caps Lock, Num Lock, and Scroll Lock indication on front panel.
  • Multiple Display Layouts — Associate the cursor with each computer based on how its display is aligned (vertically or horizontally).
  • Biometric/Smart–Card Reader Support — Connect a smartcard/biometric reader to the secure port to support user authentication across multiple isolated computers.

CONSOLE PORTS

  • 2 USB–A connectors for keyboard and mouse, 1 USB–A connector for USB devices, 2 DIN–5 connectors for PS/2 keyboard and mouse, 1 3.5mm mini jack for unbalanced stereo audio, 1 RJ45 connector for control (RDC)

COMPUTER PORTS

  • 4 USB–B connectors for keyboard and mouse, 4 USB–B connectors for USB devices, 4 3.5mm mini jacks for unbalanced stereo audio

POWER REQUIREMENTS

  • 35W max

AC INPUT

  • 100V to 240V AC

POWER TYPE

  • Internal

OPERATING TEMPERATURE

  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

  • –20° to +60°C (–4° to 140°F)

HUMIDITY

  • 0% to 80%, RH non–condensing

SUPPORTED OS

  • Windows, Linux, Mac

SECURITY CERTIFICATION

  • NIAP Common Criteria PP3.0 for Peripheral Sharing Switch (PSS) devices

WARRANTY

  • 3 years

PRODUCT CERTIFICATION

  • CE, RCM, FCC class B, VCCI, TUV US, TUV Canada

PRODUCT LIFE-CYCLE

  • 10 years

PRODUCT DIMENSIONS

  • 34.20cm x 14.80cm x 4.20cm (13.46" x 5.83" x 1.65" ) W, D, H

PRODUCT WEIGHT

  • 1.3kg (2.9lbs) approx.

SHIPPING DIMENSIONS

  • 42.00cm x 24.50cm x 8.50cm (16.54" x 9.65" x 3.35" ) W, D, H

SHIPPING WEIGHT

  • 1.9kg (4.2lbs) approx.

Applications

  • High–security organizations
  • Government agencies
  • Military
  • Financial institutions
  • Any other organization that handles sensitive and confidential information
