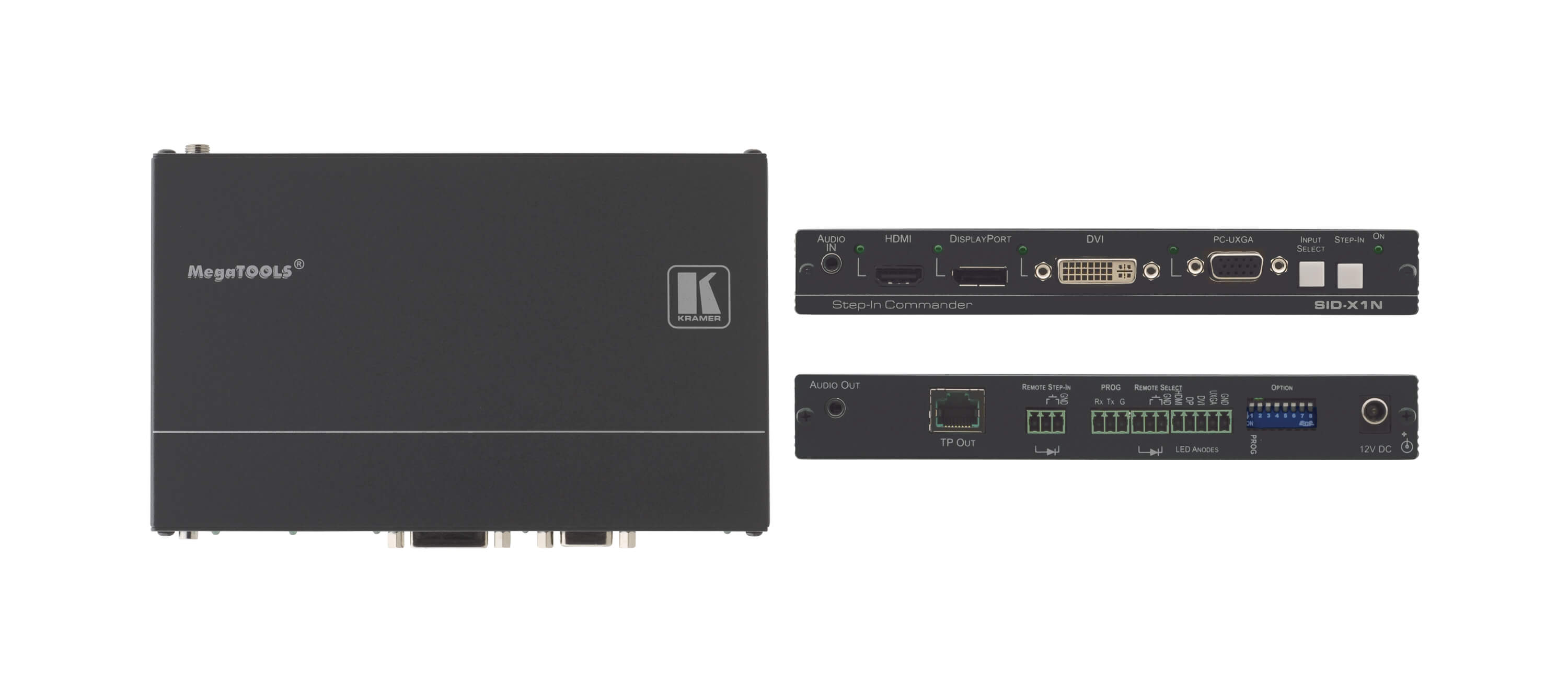

The SID−X1N is a DGKat™ twisted pair transmitter and step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source on the main display through the main switcher.
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphics channel).
- Compatible Switcher — VP–81SIDN.
- HDTV Compatible.
- HDCP Compliant. — Works with sources that support HDCP repeater mode.
- HDMI Support — x.v.Color™ and 3D.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Data Equalization and Reclocking.
- Input Signal Detection — Based on video clock presence.
- Automatic Input Selection — Based on manual selection or last connected input.
- Automatic Analog Audio Detection and Embedding.
- Local Balanced Audio De–embedding.
- Support for Digital Audio Formats.
- Lockable EDID.
- DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
- Cable — Requires STP (shielded twisted pair) cable. For optimum range and performance, use shielded Kramer CAT 6 or CAT 7 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non–Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Power Connect™ System — A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
- Local Step–In Switching — Button & contact closure.
- Power Supply — Requires independent power supply.
