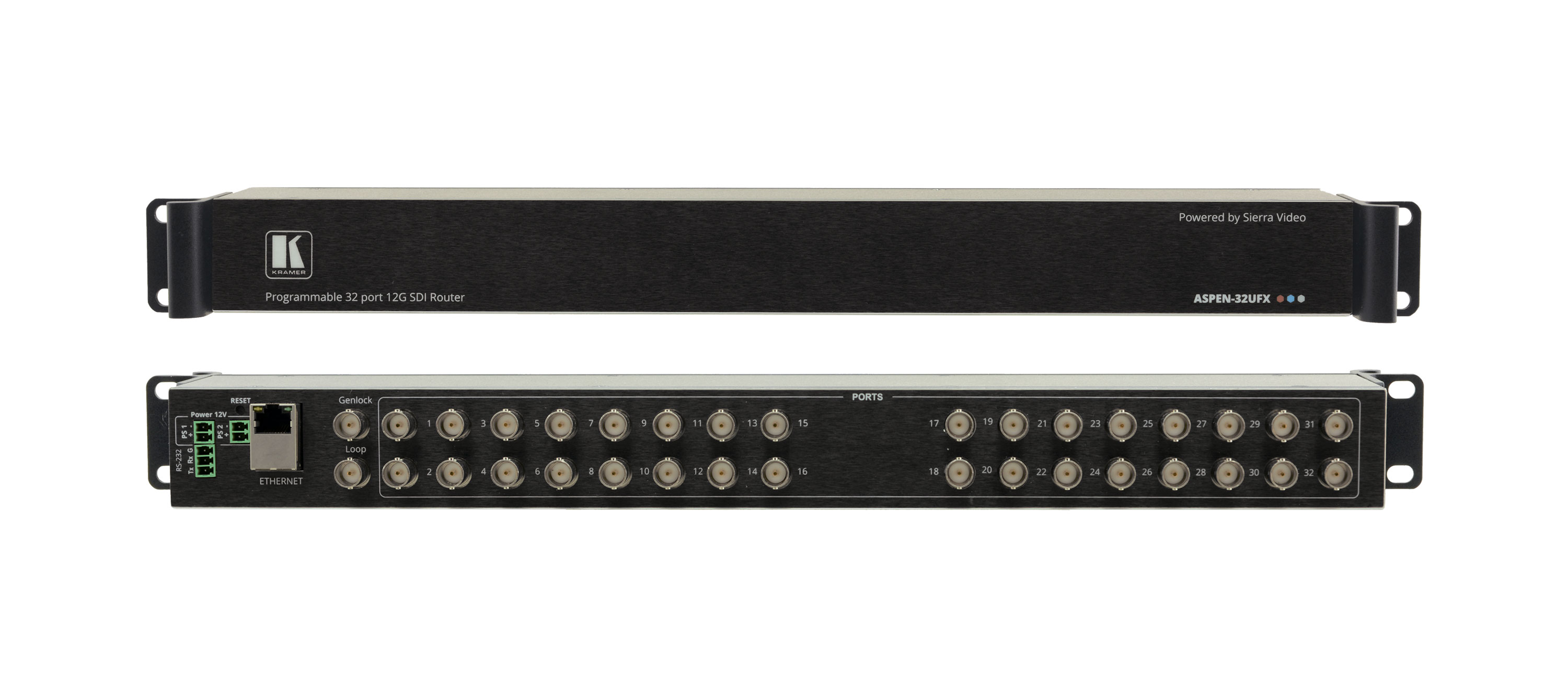

Kramer ASPEN-32UFX

32–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs

Max. Data Rate — 12Gbps
Multi–Standard Operation
Cable Equalization
Clean Switching with Genlock

‍

Download Specsheet



ASPEN−32UFX is a 32−port matrix switcher for SDI signals of up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x31 distribution amplifier, 31x1 switcher, 16x16 matrix switcher or any other possible input−output combination. ASPEN−32UFX is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller.

Max. Data Rate — 12Gbps.
HDTV Compatible.
Multi–Standard Operation — 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M
Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
Supports ANC Data — Embedded audio, teletext, time code, etc.
Cable Equalization — Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.
Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
Versatile Genlocking — Using an analog signal.
Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.

‍

Ports

32 12G-SDI/3G-SDI/HD-SDI/SDI Video: 75Ω on BNC connectors (by default, 1 to 16 are set as inputs and 17 to 32 are set as outputs)
1 Genlock: 75Ω on a BNC connector

Video

Standards: 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M
Max Resolution: 4K@60Hz (4:2:2)
Max Bandwidth: 12Gbps

Extension Line

SD Signals: Up to 300m
1.5G HD Signals: Up to 200m
3G Signals: Up to 100m
6G Signals: Up to 100m
12G Signals: Up to 80m
Coupling: DC

User Interface

Controls: Remote RS–232, Ethernet, Web pages

Power

Consumption: 12V DC, 2A
Source: 12V DC, 5A

Environmental Conditions

Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing

Standards Compliance

Safety: CE
Environmental: RoHs, WEEE

Enclosure

Size: 19”, 1U
Type: Aluminum
Cooling: Fan Ventilation

Accessories

Included: Power adapter
Cables (Recommended): Belden 4794R and 4855R 12G–SDI coax cables

Product Dimensions

43.64cm x 10.00cm x 4.36cm (17.18" x 3.94" x 1.72" ) W, D, H

Product Weight

1.0kg (2.2lbs) approx.

Shipping Dimensions

55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

Shipping Weight

1.9kg (4.2lbs) approx.

‍
