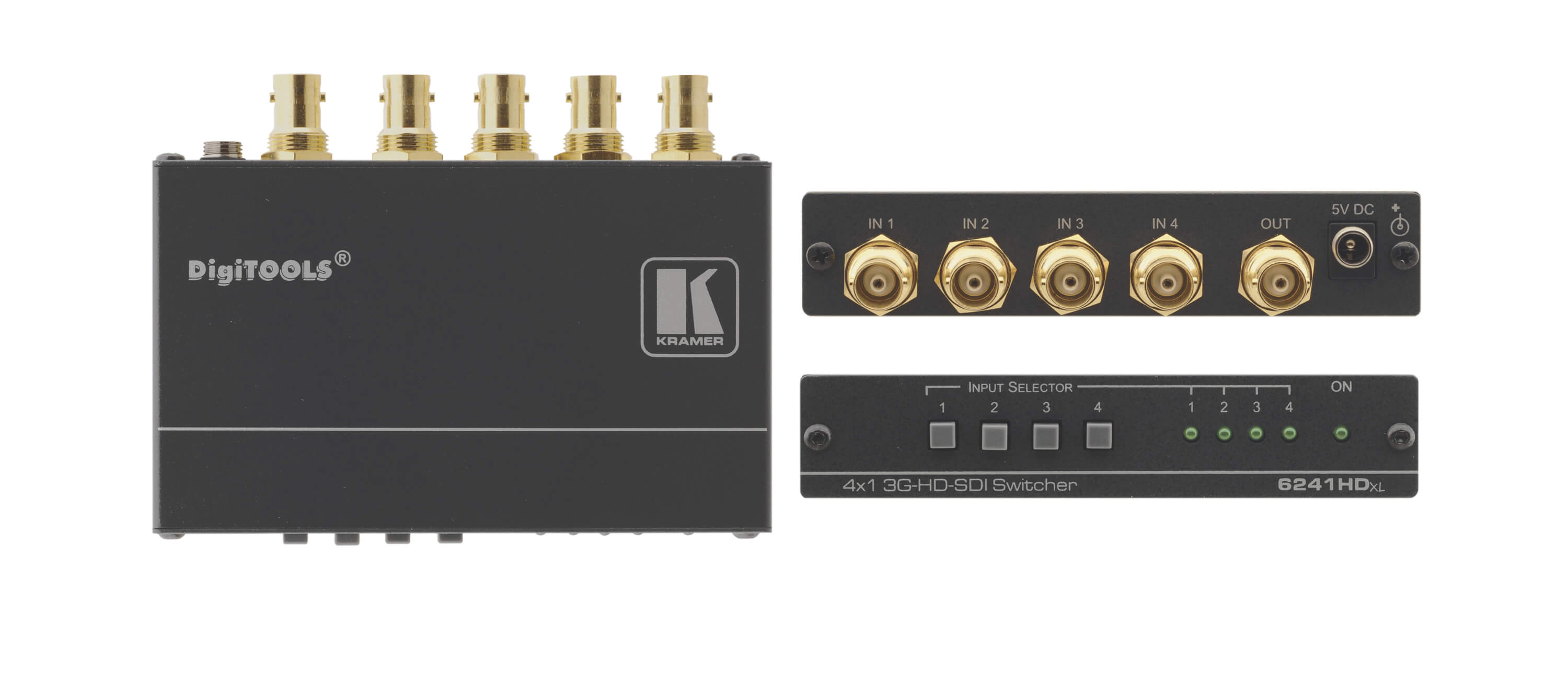

Kramer 6241HDxl

4x1 3G HD–SDI Switcher

Max. Data Rate — 3Gbps
Kramer re–Klocking™

‍

Download Specsheet



The 6241HDxl is a high-performance switcher for 3G HD-SDI video signals. It takes any one of four 3G HD-SDI inputs, provides reclocking and equalization, and outputs the signal to one 3G HD-SDI output.

Max. Data Rate — 3Gbps.
HDTV Compatible.
Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.

‍

Inputs

4 SMPTE 259M/344M serial digital video inputs (75Ω) on BNC connectors

Outputs

1 SMPTE 259M/344M serial digital video output (75Ω) on BNC connectors

Max. Data Rate

2.97Gbps

Max. Output Level

800mVpp/75Ω

Equalization

Automatic equalization for losses on 75Ω coaxial cable

Power Consumption

5V DC, 410mA

Included Accessories

Power supply, mounting bracket

Product Dimensions

12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

Product Weight

0.2kg (0.5lbs) approx.

Shipping Dimensions

49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H

Shipping Weight

0.5kg (1.2lbs) approx.

‍

Applications

Video broadcast studios for signal routing.
Non–linear editing suites.
Video production studios.
Boardrooms and classrooms.

‍
