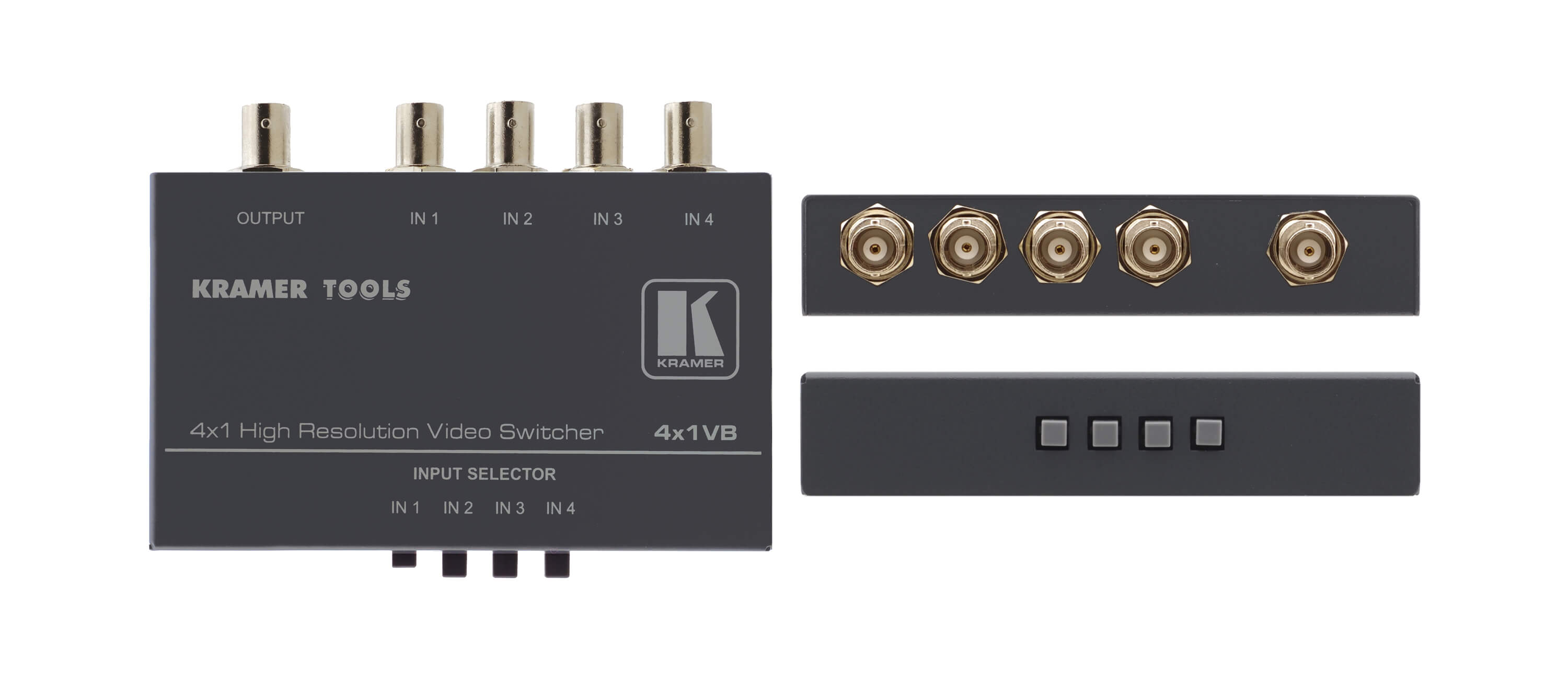

Kramer 4x1VB

The 4x1VB is a high−performance switcher for composite video signals. It switches any one of four signals to a single output.

High Bandwidth — 400MHz (–3dB).
Video on BNC Connectors.
Mechanical (Passive) Switching — No power required.

‍

Input

4 video, 1Vpp/75Ω on BNC connectors

Output

1 composite or single component video, 1Vpp/75Ω on a BNC connector

Bandwidth (-3DB)

400MHz

Switching System

Mechanical, break–before–make

Included Accessories

Mounting bracket

Options

RK–3T 19" rack adapter

Product Dimensions

12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

Product Weight

0.2kg (0.4lbs) approx.

Shipping Dimensions

23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H

Shipping Weight

0.4kg (1.0lbs) approx.

‍

Applications

Presentation and display systems.
CCTV and home theater applications.
Rental and staging applications.
Also compatible with SDI and any other high frequency signals.

‍
