Kramer 3232HDS-XL

32x32 HD–SDI (1.5G) & Analog Balanced Stereo Audio Matrix Switcher

‍

Download Specsheet



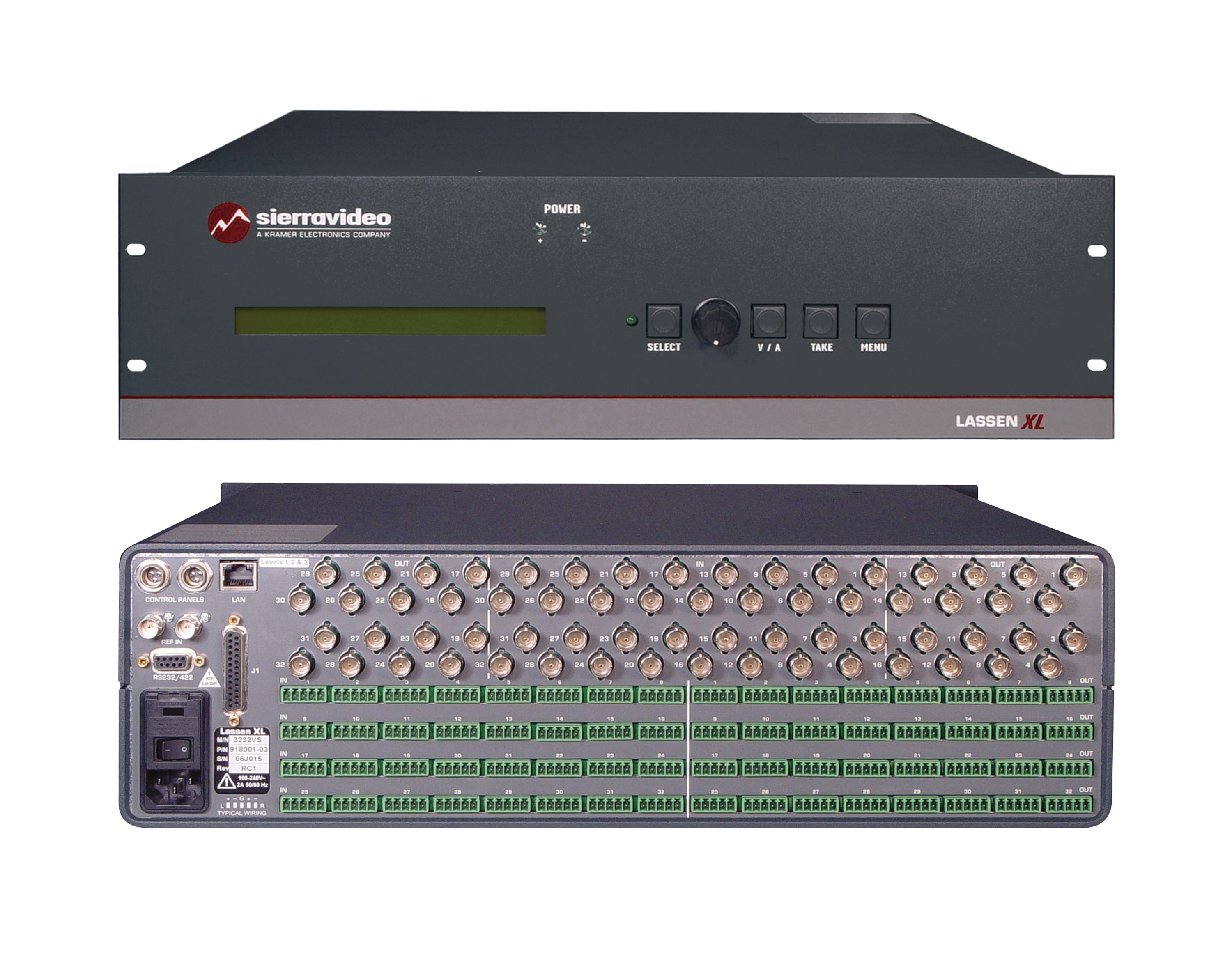

The Lassen HD XL Series offers flexibility and adaptability to any application where saving space and costs are important. 3232HDS−XL is a 32x32 HD−SDI (1.5G) & analog balanced stereo audio matrix switcher, available in a compact 3RU frame. 3232HDS−XL also supports breakaway stereo audio switching whereby the digital video, audio left and audio right can all be routed independently. It offers control via the front panel or remotely via RS−232 or Ethernet.

Inputs

32 HD-SDI: On BNC connectors
32 Balanced/Unbalanced Stereo Audio: On 5–pin terminal blocks

Outputs

32 HD-SDI: On BNC connectors
32 Balanced/Unbalanced Stereo Audio: On 5–pin terminal blocks

Ports

2 Sync: On BNC connectors
1 Ethernet: On an RJ–45 connector
1 RS-232/422: On a 9–pin D–sub connector
2 RS-485: On male mini–XLR connectors, for control panel
1 AC Power: On an AC power connector

Video

Level: 800mVpp +/–10%
Impedance: 75Ω
Return Loss: <–15dB up to 1.5GHz
Cable Equalizing Range: 0 — 100m for SMPTE 292, Belden 8281 / 0 — 300m for all other standards, Belden 8281
Rise/Fall Times: <270psec

Audio

Input – Max. Source Level: +24dBu
Input – Impedance: >20kΩ
Output – Max. Source Level: +24dBu balanced +18dBu unbalanced
Output – Impedance: <50Ω

Enclosure

Size: 19" — 3U — mounts in a standard 19" rack
Dimensions: 19” x 18.5” x 5.25” W, D, H

‍
